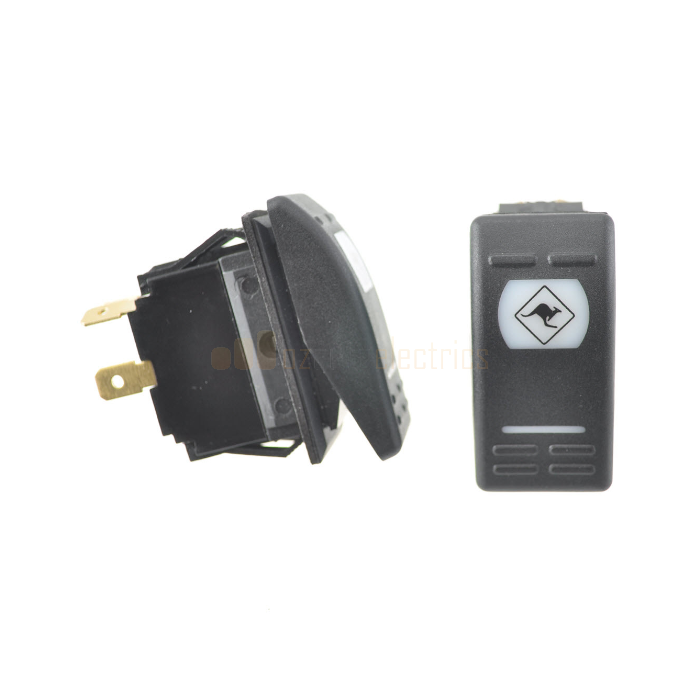

Lightforce Universal Momentary Winch Rocker Switch 16 Amp 12V

Designed for use with the radio controlled unit however can also be used to operate a 12 volt winch (via the solenoids), this unique switch features the Lightforce logo that can be wired independently into the vehicles electrical lighting circuit to illuminate once the lighting system has been activated.

SPECIFICATIONS:

• 12 volt 16 amp.
• Independent illuminated Lightforce logo.
• Momentary two way switch 5P SPDT (ON)-OFF-(ON)
• Can activate two sets of lights (using a second radio controlled unit) or be used to activate a winch
• Switch size 36.8mm(L) X 21.7mm(W)
• IP54 Rated

Wiring instructions:

• Terminal 1 - To vehicles active lighting circuit
• Terminal 2 - Connect to vehicles earth
• Terminal 3 - Blank
• Terminal 4 - To accessory (Power out)
• Terminal 5 - From supply (Power in)
• Terminal 6 - To accessory (Power out)
