Delphi Metri-Pack Connection Systems utilize internationally standardized male blade sizes, allowing for flexibility in design. Blade sizes range from 1.5 mm to 8 mm with current capability ranging from 14 to 60 amps.
Metri-Pack Connectors are designed to be compatible with processing techniques such as automated pull-to-seat and push-to-seat assembly, dual-stage crimping, load cell crimp inspection and automated part identification and orientation. Delphi Metri-Pack Connector systems with silver interface platings pass the SAE® (Society of Automotive Engineers) J2030* Heavy-Duty Electrical Connector Standard.
Ideal for low energy electronic circuits or power circuit applications, the Metri-Pack product line includes:
- High-performance interconnects in sealed or unsealed versions
- Custom-engineered direct connections to motors, switches, sensors and other devices
- Environmentally sealed electronic headers with current capacity of 14 amps, designed for service in severe environments
- Junction blocks and electrical centers
Benefits:
- Pass SAE J2030* Heavy-Duty Electrical Connector Standard (with silver interface platings)
- Extended product range offers significant design and application versatility
- Used in high current to low energy circuits for electrical versatility
- Strength and stability of terminals helps assure correct alignmentÂ
- Utilizes internationally standard male blade sizes for design flexibility
- Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) for superior connection reliability
- Sealed version for excellent resistance to temperature, chemicals and abrasion
- Testing to SAEJ2030
Typical Applications:
Metri-Pack Connection Systems are suited for use in flat blade connections for electronic through high current applications.
Application Guidelines:
 | 150 Series | 280 Series | 480 Series | 630 Series | 800 Series |
Cable Range | 0.35 - 1.0mm2 | 0.35 – 5.0mm2 | 0.35 – 5.0mm2 | 0.50 – 5.0mm2 | 2.0 – 8.0mm2 |
Cable Range Unsealed | 0.35 – 1.0mm2 | 0.35 – 5.0mm2 | 0.50 – 5.0mm2 | 0.35 – 5.0mm2 | 2.0 – 8.0mm2 |
Current Range | 0 – 14 amps | 0 – 30 amps | 0 – 42 amps | 0 – 46 amps | 0 – 60 amps |
Temperature Range | -40°C to 125°C | -40°C to 125°C | -40°C to 125°C | -40°C to 125°C | -40°C to 125°C |
Resistance | <10mΩ@20mV | <10mΩ@20mV | <10mΩ@20mV | <10mΩ@20mV | <10mΩ@20mV |
Voltage Drop | <10.0mV/amp | <3.0mV/amp | <3.0mV/amp | <3.0mV/amp | <3.0mV/amp |
Centerline Spacing Unsealed | 3.5mm | 5.0mm | 6.9mm | 8.5mm | 10.3mm |
Centreline Spacing Sealed | 6.0mm | 7.7mm | 9.5mm | 10.8mm | 14.0mm |
Blade Width | 1.5mm | 2.8mm | 2.8mm | 6.3mm | Â 8.0mm |
The general application guidelines above are for reference only and may not account for all the variables that would be present in an actual application. For additional detailed product performance information, contact Delphi.
-
Delphi 12124977 Metri-Pack 280 Series Male Sealed Tin Plating Tang Terminal, Cable Range 0.35 - 0.50 mm2Special Price $0.66 Regular Price $0.99
-
Delphi 15304718 GT 280 Series Female Sealed Tin Plating Terminal, Cable Range 0.35 - 0.50 mm2Special Price $0.79 Regular Price $0.89
-
Delphi 15304719 GT 280 Series Female Sealed Tin Plating Terminal, Cable Range 0.75 - 1.00 mm2Special Price $0.88 Regular Price $0.99
-
Delphi 15300014 Metri Pack 280 Series Blue Secondary LockSpecial Price $3.85 Regular Price $4.95
-
Delphi 15300027 2 Way Black Metri-Pack 280 Sealed Female Connector AssemblySpecial Price $7.70 Regular Price $7.95
-
Delphi 15336530 GT TPA Secondary Lock 2 Way Black (Bag of 10)Special Price $11.53 Regular Price $13.10
-
Delphi 12034145 Metri Pack TPA 3 Way Secondary Lock (Bag of 10)Special Price $15.36 Regular Price $17.45
-
Delphi 12066176 Metri-Pack 4 Way Secondary Lock Black (Bag of 10)Special Price $16.21 Regular Price $18.43
-
Delphi 15300015 Metri-Pack 3 Way Secondary Lock (Bag of 10)Special Price $18.35 Regular Price $20.85
-
Delphi 12162833 4 Way Gray Metri-Pack 150.2 Sealed Female ConnectorSpecial Price $18.35 Regular Price $20.85
-
Delphi 15324857 Metri-Pack 5 Way Secondary Lock (Bag of 10)Special Price $19.01 Regular Price $19.80
-
Delphi 15300016 Metri-Pack Secondary Lock 4 Way Black (Bag of 10)Special Price $23.06 Regular Price $26.20
-
Delphi 15300014 Metri-Pack 2 Way Secondary Lock (Bag of 10)Special Price $29.02 Regular Price $32.98
-
Delphi 15324063 TPA Metri-Pack 4 Way Secondary Lock (Bag of 10)Special Price $30.73 Regular Price $34.93
-
Ionnic P-12129409 Metri-Pack 280 Series Tonguegard Female Sealed Tin Plating Terminal, Cable Range 1.00 - 2.00 mm2 (Bag of 100)Special Price $32.38 Regular Price $36.80
-
Ionnic P-2077413 Metri-Pack 280 Series Female Sealed Tin Plating Tang Terminal, Cable Range 3.49 - 3.65 mm (Bag of 100)Special Price $32.38 Regular Price $36.80
-
Ionnic P-12129493 Metri-Pack 280 Series Female Sealed Tin Plating Tang Terminal, Cable Range 2.00 - 3.00 mm2 (Bag of 100)Special Price $34.45 Regular Price $39.15
-
Ionnic P-12077411/100 Metri-Pack 280 Series Female Sealed Tin Plating Tang Terminal, Cable Range 0.50 - 1.25 mm2 (100 Pack)Special Price $41.38 Regular Price $47.03
-
Delphi 15300002 2 Way Black Metri-Pack 280 Sealed Male Connector (Bag of 10)Special Price $43.96 Regular Price $49.95
-
Ionnic P-12048159/100 Metri-Pack 280 Series Male Sealed Tin Plating Tang Terminal, Cable Range 0.50 - 0.80 mm2 (Bag of 100)Special Price $45.87 Regular Price $52.13
-
Delphi 15300003 3 Way Metri Pack 280 Series Connector (Bag of 10)Special Price $46.09 Regular Price $52.38
-
Delphi P-12065171/10 Metri Pack 280 Series ConnectorSpecial Price $47.81 Regular Price $54.33
-
Delphi P-12129600/10 Delph P-12129600/10 Grey 4 Way Plug 280 Series ConnectorSpecial Price $50.36 Regular Price $57.23
-
Ionnic12186400 280 Series Sealed Metri-Pack 5 Way Male Connector (Bag of 10)Special Price $72.56 Regular Price $82.45
-
Delphi 12040977 Black 3 Way Metri Pack 280 Series Connector (Bag of 10)Special Price $87.08 Regular Price $98.95
-
Delphi 12065172 Metri Pack 280 Series 1 Way Connector (Bag of 10)Special Price $89.63 Regular Price $101.85
-

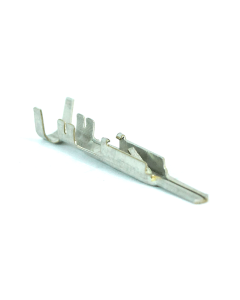

Ionnic P-12129497 Metri-Pack 280 Series Male Sealed Tin Plating Tang Terminal, Cable Range 2.00 - 3.00 mm2 (Bag of 100)Special Price $93.57 Regular Price $106.33
-
Delphi 12084891 5 Way 280 Series Connector (Bag of 10)Special Price $109.25 Regular Price $124.15
-
Delphi 12129565 4 Way Metri Pack 280 Series Connector (Bag of 10)Special Price $110.97 Regular Price $126.10
-
Ionnic P-12162833 4 Way Gray Metri-Pack 150.2 Sealed Female Connector (Bag of 10)Special Price $183.52 Regular Price $208.55
