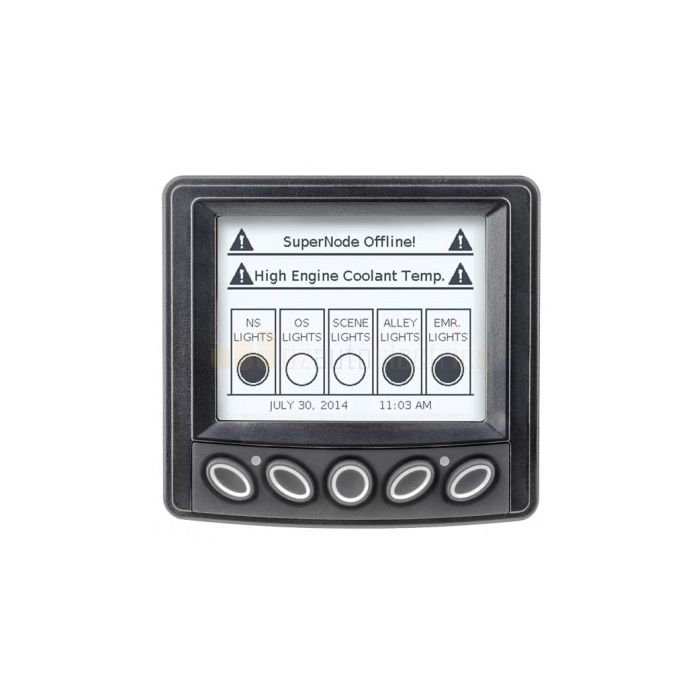

Ionnic 610-00027 Ultraview Monochrome 3.8" - UV27 (ES-Key)

Ionnic 610-00027 Ultraview Monochrome 3.8" - UV27 (ES-Key)

Features:

• Easy to read QVGA 3.8” monochrome LCD screen with backlight and heater.
• Displays gauges, soft key commands, and custom messages.
• 5 tactile push buttons.
• J1939 CAN based information display incorporating programmable switching.
• Custom configurations available on request.
• Reverse polarity and EMF protected.
• Connector kits available providing all required connectors, contacts etc.
• Environmentally sealed - IP67.
• Multi-voltage.

Specifications:

• Screen Size:3.8"
• Resolution:320 x 240
• Voltage:6-36V
• Current Draw:130mA @ 13.8V
• CAN:SAE J1939
• Inputs:UV26 - 1
  UV27 - 6
• Outputs:UV26 - 1
  UV27 - 2
• Output:Digital 500mA
• Vibration:7.86G rms 5.2000 Hz, 3 axis
• Shock:+/- 50G, 3 axis
• Housing Material:Polycarbonate
  ABS
• Approvals:SAE J1113
• IP Rating:IP67
• Operating Temp:-40­­°C to 85°C
