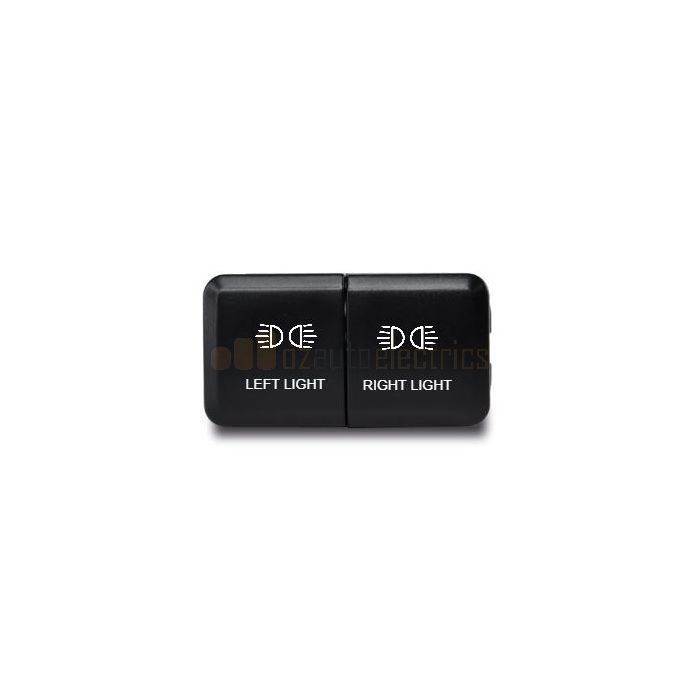

Lightforce CBSWTYDMTO-H Left Right Work Light Horizontal Switch

$45.00
In stock
SKU
CBSWTYDMTO-H
Lightforce CBSWTYDMTO-H Left Right Work Light Horizontal Switch is available to buy in increments of 1

Lightforce CBSWTYDMTO-H Left Right Work Light Horizontal Switch

Lightforce CBSWTYDMTO-H Left Right Work Light Horizontal Switch

The LED’s in this switch are Green and Blue. Green is active when the dash light circuit is active and the switch is in the OFF position. Blue is active when the switch is in the ON position.

Dual switch with a single powered input feeding two independently switched outputs suitable for early model and the 70 Series Toyota vehicles.

In addition, also compatible with the Holden Colorado 2017 on models when combined with the Lightforce switch fascia CBFASCIA2

Dual coloured illumination is only activated when the vehicles dash lights are on, green illumination with switch in the off position with blue illumination when the switch is on.

The switches can function independent to the dash lights, however will not illuminate until the vehicles dash lights are activated. A single input activates both the top and bottom switches, so if you have a series of dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power.

Suitable for use with both positive and negative switched vehicles

This non-genuine OEM style switch has a maximum current rating of 3 amps @ 12 volts and is to be used in conjunction with a relay if current exceeds 3 amps.

Full customisable laser engraved icons and text to ensure longevity

Supplied with harness and connector

Australian design patent

Suits the following vehicles:

Make Model Year
Holden Colorado (fitted with LF fascia) 2017 - 2020
Toyota 100 Series Landcruiser 1998 - 2007
Toyota Landcruiser 79 (Plastic Dash) Series 1985 - 2018
Switch Cutout Size

35mm x 17mm

More Information
Manufacturer Lightforce
Vehicle Make Holden, Toyota
