Lightforce CBFUSE1 Driving Light Fuse Tap - Standard Blade

Special Price $7.76 Regular Price $8.00
In stock
SKU
CBFUSE1
Lightforce CBFUSE1 Driving Light Fuse Tap - Standard Blade is available to buy in increments of 1

Lightforce CBFUSE1 Driving Light Fuse Tap - Standard Blade

Lightforce CBFUSE1 Driving Light Fuse Tap - Standard Blade

Description

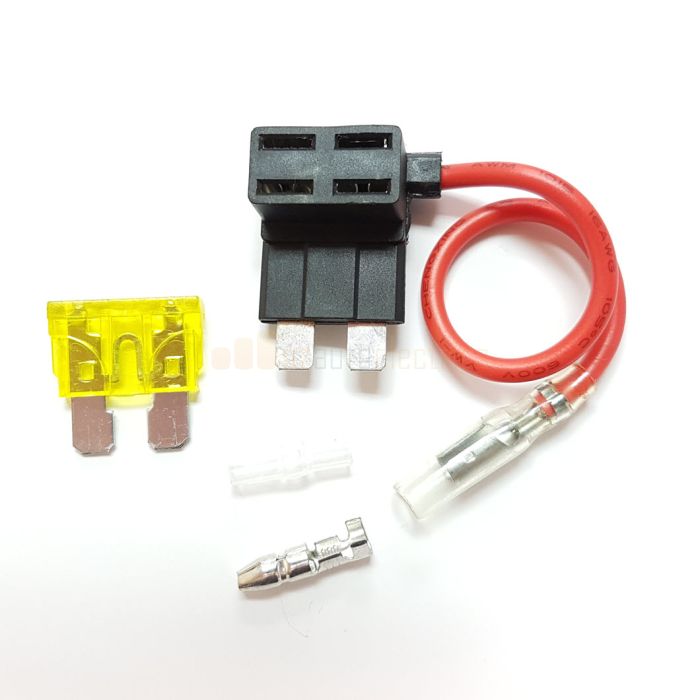

Turns the standard single factory fuse into two, one for the existing OEM fuse and a second fuse for the new circuit. Does not require cutting or splicing to add extra power circuits for additional accessories. No alteration required to the vehicles electrical system 100% reversible. Terminated with factory crimped bullet terminals with matching terminal and boot supplied ensuring long term reliability. Comes in a pack of 3!

FEATURES:

  • Available in four fuse types
  • Includes accessory fuse
  • Includes uncrimped male terminal and insulation
  • Wire gauge 16 AWG length approximately 140mm
  • 105°c heat resistance wire
  • Wire length approximately 130mm.

SPECIFICATIONS:

  • Rated current: Installation rating up to 20A (Max)
  • Dielectric strength for 60 second: AC1500V (Min)
  • Insertion & extraction force: 1Kg (Min)
  • Contact resistance at 1A DC: 5m? (Max)
  • Insulation resistance at 500V DC: 100M? (Min)
  • Voltage drop: 20mV (Max)
  • Moulded Parts: Nylon PA66 UL 94V-0
  • Terminals Brass: tin plated
  • Wire Gauge: #16 AWG UL 1015
More Information
Manufacturer Lightforce
