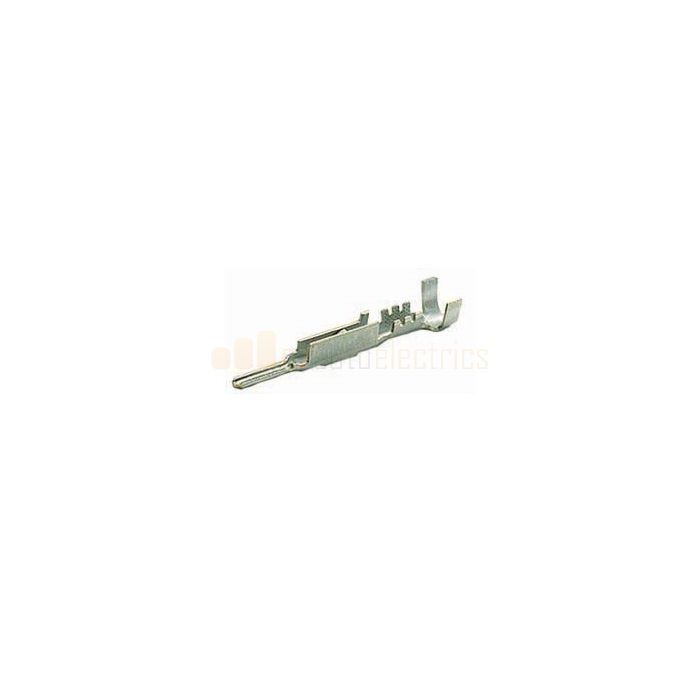

Delphi 12077628 Metri-Pack 150 Series Male Sealed Tin Plating Tang Terminal, Cable Range 0.35 - 0.50 mm2

Special Price $0.66 Regular Price $0.79
In stock
SKU
12077628
Delphi 12077628 Metri-Pack 150 Series Male Sealed Tin Plating Tang Terminal, Cable Range 0.35 - 0.50 mm2 is available to buy in increments of 1

Delphi 12077628 Metri-Pack 150 Series Male Sealed Tin Plating Tang Terminal, Cable Range 0.35 - 0.50 mm2

Delphi 12077628 Metri-Pack 150 Series Male Sealed Tin Plating Tang Terminal, Cable Range 0.35 - 0.50 mm2

Part # : 12077628
Description : Metri-Pack 150 Series Male Sealed Tin Plating Tang Terminal, Cable Range 0.35 - 0.50 mm2
Product Type : Terminal
Status : This item is AVAILABLE from Delphi Packard Electrical/Electronic Architecture currently, or in the near future. Active
Blade size [mm] : 1.5
Terminal family : Metri-Pack
Series : 150
Gender : Male
Sealed : Sealed
Material : CuSn3Zn9
Plating : Tin
Minimum Cable Core Cross Section [mm2] : 0.35
Maximum Cable Core Cross Section [mm2] : 0.50
Minimum Cable Diameter [mm] : 1.47
Maximum Cable Diameter [mm] : 2.40
Current range [A] : 14
Temperature range [℃] : -40 to 125
Typical cable seal : 15393249
Weight [g] : 0.69
ELV compliant : According to Delphi's knowledge the part is in compliance with ELV EU-Directive 2000/53/EC and its Annex II. Yes
RoHs compliant : According to Delphi's knowledge the part is in compliance with RoHS EU-Directive 2011/65/EU and its Annexes. Yes
More Information
Manufacturer Delphi
