Hella 2377 DuraLED LED Combination Stop / Tail / Indicator Lamp 12/24 Volt Triple Combination

Be the first to review this product

Special Price $211.56 Regular Price $222.14

In stock

SKU

2377

Hella 2377 DuraLED LED Combination Stop / Tail / Indicator Lamp 12/24 Volt Triple Combination is available to buy in increments of 1

Hella 2377 DuraLED LED Combination Stop / Tail / Indicator Lamp 12/24 Volt Triple Combination

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

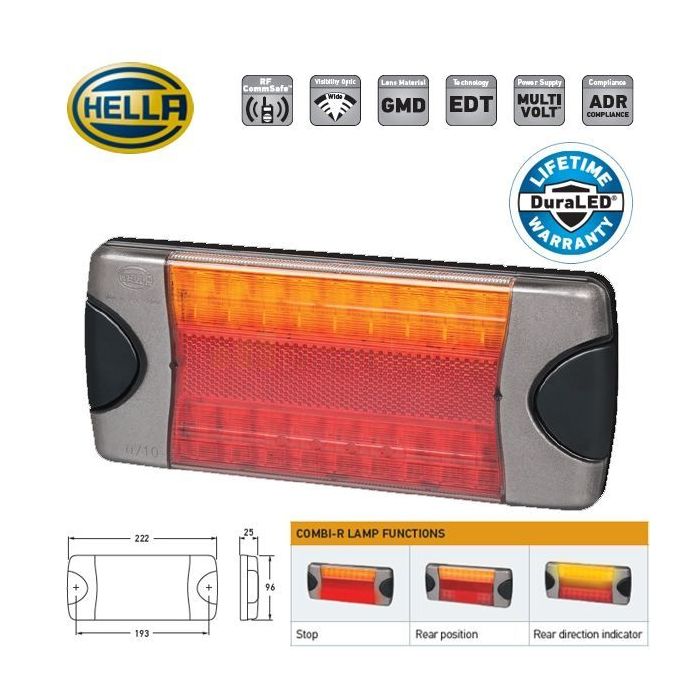

Hella 2377 DuraLED LED Combination Stop / Tail / Indicator Lamp 12/24 Volt Triple Combination

Specifications
Type	LED
Shape	Rectangular
Voltage	12/24V
Mount	Surface
Width (mm)	223
Height (mm)	96
Depth (mm)	25

Red and Amber Illumination
18 x High Intensity Red LED's and 12 x High Intensity Amber LED's
Red and Amber Optical Grilamid Nylon Lens with inbuilt Retro Reflector
Grey ABS Plastic Housing with mounting screws- caps and bushes included
Horizontal Surface Mount- low mounting depth for easy installation
Pre-wired 2.5m Lead
Fully encapsulated circuitry
Reverse Polarity and Transient Voltage Suppressor
Sealed against Dust and Moisture
Able to withstand High Pressure washing and water submersion
UV- Chemical and stress resistance
ADR 49/00 Rear Stop Lamp specifications approved
ADR 6/00 2A Rear Indicator Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
IP6K7 and IP6K9K Rating
Box Qty: 1
2 Year Warranty

Spare Parts:-

9.2377.08 Grey Slim Screw Cap (Single)

9.2330.17 Grey Slim Screw Cap and Screw Bosses (4 of each kind)

More Information

More Information
Manufacturer	Hella
Hella SAP No.	980.710-011
Barcode	9416325229001
