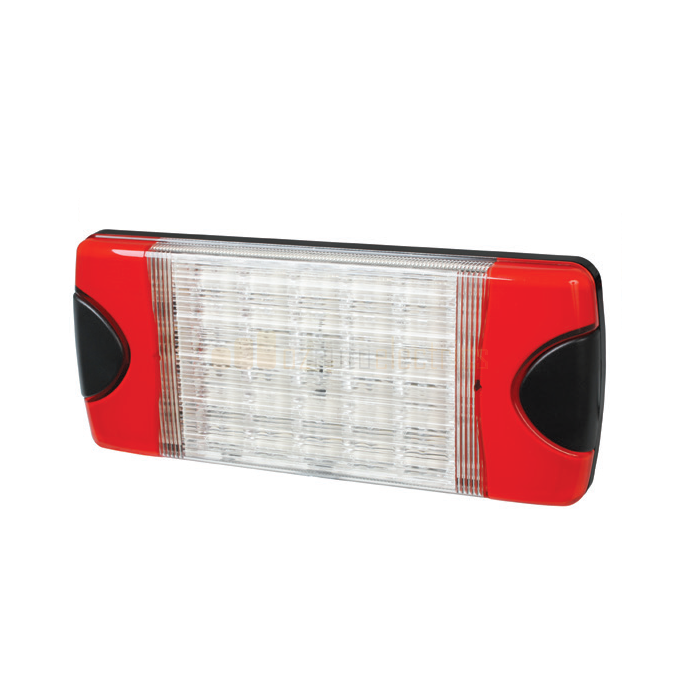

Hella 2378DT DuraLED Combi-S - Heavy Duty - Night Light and DT Connector

Hella 2378DT DuraLED Combi-S - Heavy Duty - Night Light and DT Connector

Hella 2378DT DuraLED Combi-S - Heavy Duty - Night Light and DT Connector

Part Numbers 2378DT

Mounting: Two hole surface mount with mounting bushes supplied.

Suitable for horizontal or vertical mounting.

Voltage: Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption:

 Stop : 5W

Rear position: 1W

Rear direction indicator: 5W

Night: 1W

Protection: As per P/N 2378.

Accessory: 4963-P 6 pole DT plug, wedge and 6 contacts.

Lens Material: Grilamid®

Compliance:

ADR 6/00: Cat 2a

ADR 49/00

ISO 13207-1 (2378-DTCS only)

E24 5883

ECE R6/01

ECE R7/02

Rearlight - LED - 12/24V - mounting/Horizontal Screw Fitting/Vertical Screw Fitting - ADR/GGVS - Lens Colour: transparent - Rear

Features

• Length: 222mm - Width: 25mm - Height: 96mm - Lamp Type: LED - with mounting parts
• Light functions: 4 - with stop light (LED)/with position light (LED)/with indicator (LED)/with marker lamp (LED)
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R6/01/R7/02 - Prot.type (IP Code): IP6K9K/IP6K7
• Diffusing Lens Material: Polyamid 12 - Lens Colour: transparent
• Mounting Type: mounting/Horizontal Screw Fitting/Vertical Screw Fitting

Specifications

• Part number: 2378DT
• Hella number: 2SD 980 602-001
• Barcode (EAN): 9416325228738
• Brand: Hella
• Fitting Position: Rear
• Voltage: 12 / 24 V
• Light Design: LED
• Lamp Type: LED
• Number of light functions: 4
• Light Function: with indicator (LED) / with marker lamp (LED) / with position light (LED) / with stop light (LED)
• Lens Colour: transparent
• Mounting Type: Horizontal Screw Fitting / Vertical Screw Fitting / mounting
• Length: 222 mm
• Width: 25 mm
• Height: 96 mm
• Lens Material: Polyamid 12
• Power Consumption: 12 W
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• fulfils ECE standard: R6/01 / R7.02
• Registration Type: ADR/GGVS approved

with attachment parts Assy./disassy. by qualified personnel required!
