Redarc SBI212 Smart Start SBI 12V 200A Dual Battery Isolator
Special Price
$385.00
Regular Price
$564.85
In stock
SKU
SBI212
Redarc SBI212 Smart Start SBI 12V 200A Dual Battery Isolator is available to buy in increments of 1
Redarc SBI212 Smart Start SBI 12V 200A Dual Battery Isolator
Redarc SBI212 Smart Start SBI 12V 200A Dual Battery Isolator

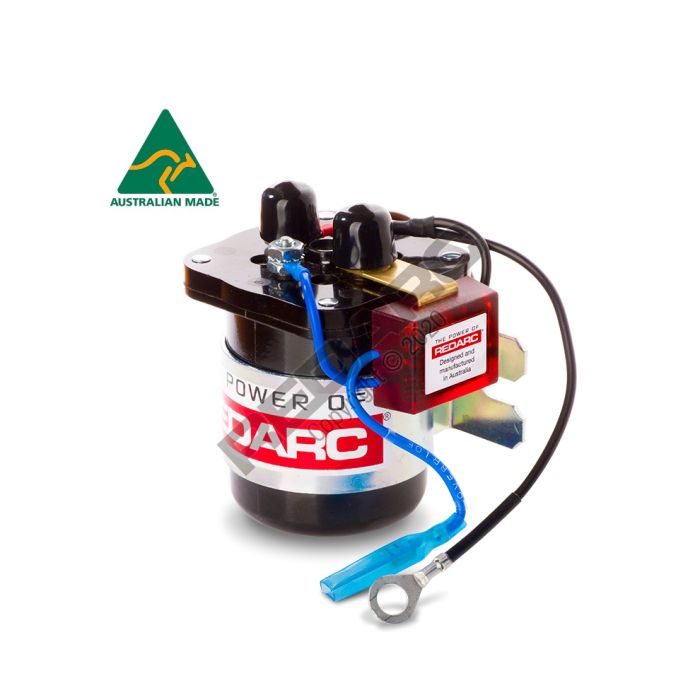

The REDARC Smart Start® SBI212 is a battery isolator used as a solenoid priority system to protect that start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. The SBI212 provides 12 volt DC incorporating 200A of continuous ratings, the battery isolator is designed for extremely heavy-duty operations.
Â
Power Saving Technology
Primarily used in commercial vehicle dual battery systems, it incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features a low standby current draw and sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.
The Smart Start SBI battery isolator is a safe way to charge dual battery system and should often be installed with a high quality fuse kit.
Â
Features
- Overmould design
- Compact in size and easy to install
- Silver contacts for longer life and suitable for marine applications
- Power saving technology
- Fault indication
- Fully surge protected
Specifications:
Input (Operating) Voltage | 12VDC |
Output Current Rating (Cont.) | 200A |
Input Fuse Rating | 200A |
Output Fuse Rating | 200A |
Warranty | 2 Years |
Length (mm) | 100 |
Width (mm) | 95 |
Height (mm) | 90 |
Weight (kg) | 0.6 |
Type Approval | CE |
Â
Manufacturer | Redarc |
---|
