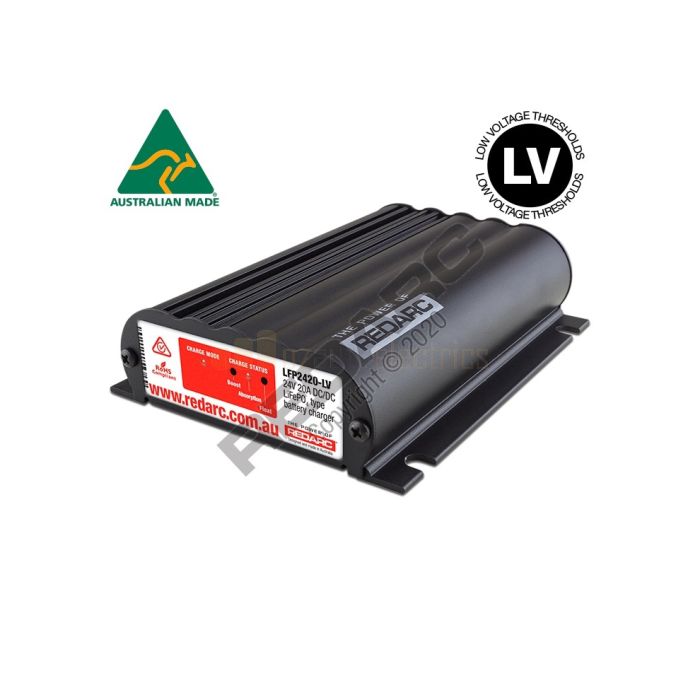

Redarc LFP2420-LV 24V 20A In-Vehicle LifePO4 Battery Charger (Low Voltage)
Redarc LFP2420-LV 24V 20A In-Vehicle LifePO4 Battery Charger (Low Voltage)
Redarc LFP2420-LV 24V 20A In-Vehicle LifePO4 Battery Charger (Low Voltage)
The REDARC LFP2420-LV In-vehicle battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge Lithium Iron Phosphate (LiFeP04) batteries to their optimal level with chemistry specific battery charging algorithms and features lower voltage setting so it can operate with variable voltage alternators.
The LFP2420-LV features a three stage charging algorithm with a 24V charging output, the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters, sleeper cabin air conditioners and side curtains.
The LFP2420-LV features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.
Features
- Three Stage DC to DC Battery Charger
- MPPT Solar Regulator
- Start Battery Isolator
- Fully sealed
- No fan for super quiet operation
- Charges Lithium Iron Phosphate (LiFeP04) batteries
Specifications:
| Current Rating (Continuous 20°C) | 20A |
| Input Current (Max.) | 60A/40A (Not supplied) |
| Output Fuse Rating | 30A (Not supplied) |
| Output Power | 600W |
| Input (Operating) Voltage | 9-32V |
| Open Circuit Voltage | 17.5V-32.0V |
| Battery Type | LiFePO4 |
| Absorption Stage Voltage Level | 28.8V |
| Float Stage Voltage Level | 27.2V |
| No Load Current | <100mA |
| Standby Current Draw | <8mA |
| Ambient Temperature | -20ºC to +80ºC |
| Minimum O/P Battery Volts | 4.2V |
| Weight (kg) | 0.68 |
| Main Unit Dimensions | 150x120x37mm |
| Warranty | 2 Years |
| Type Approval | CE, C-Tick, AS/NZS CISPR11:2004 |
| Manufacturer | Redarc |
|---|
