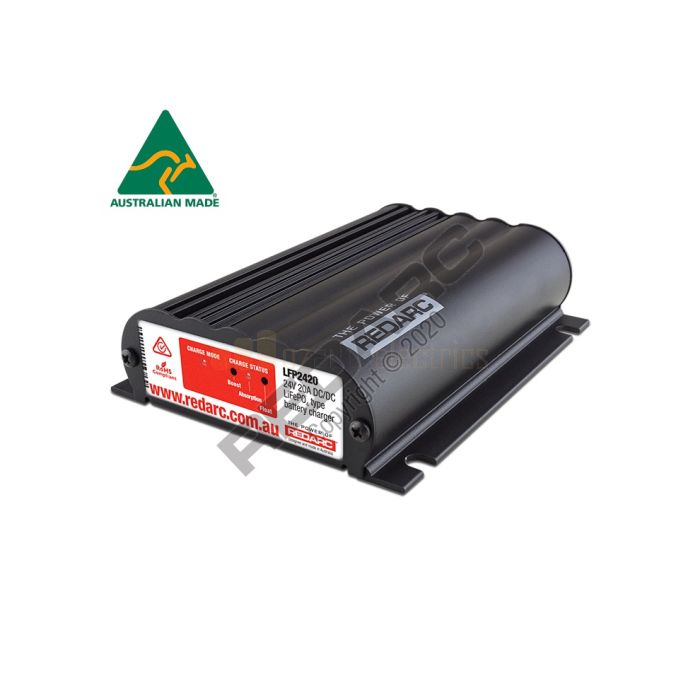

Redarc LFP2420 24V 20A In-Vehicle LifePO4 Battery Charger

$767.13
In stock
SKU
LFP2420
Redarc LFP2420 24V 20A In-Vehicle LifePO4 Battery Charger is available to buy in increments of 1

Redarc LFP2420 24V 20A In-Vehicle LifePO4 Battery Charger

Redarc LFP2420 24V 20A In-Vehicle LifePO4 Battery Charger

The REDARC LFP2420 In-vehicle battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge Lithium Iron Phosphate (LiFeP04) batteries to their optimal level with chemistry specific battery charging algorithms.

The LFP2420 features a three stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

The LFP2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

Features

  • Three Stage DC to DC Battery Charger
  • MPPT Solar Regulator
  • Start Battery Isolator
  • Fully sealed
  • No fan for super quiet operation
  • Charges Lithium Iron Phosphate (LiFeP04) batteries

Specifications:

Current Rating (Continuous 20°C) 20A
Input Fuse Rating 60A/40A (Not supplied)
Output Fuse Rating 30A (Not supplied)
Output Power 600W
Input (Operating) Voltage 9-32V
Open Circuit Voltage 17.5V-32.0V
Battery Type LiFePO4
Absorption Stage Voltage Level 28.8V
Float Stage Voltage Level 27.2V
No Load Current <100mA
Standby Current Draw <8mA
Ambient Temperature -20ºC to +80ºC
Minimum O/P Battery Volts 4.2V
Weight (kg) 0.68
Main Unit Dimensions 150x120x37mm
Warranty 2 Years
Type Approval CE, C-Tick, AS/NZS CISPR11:2004
More Information
Manufacturer Redarc
