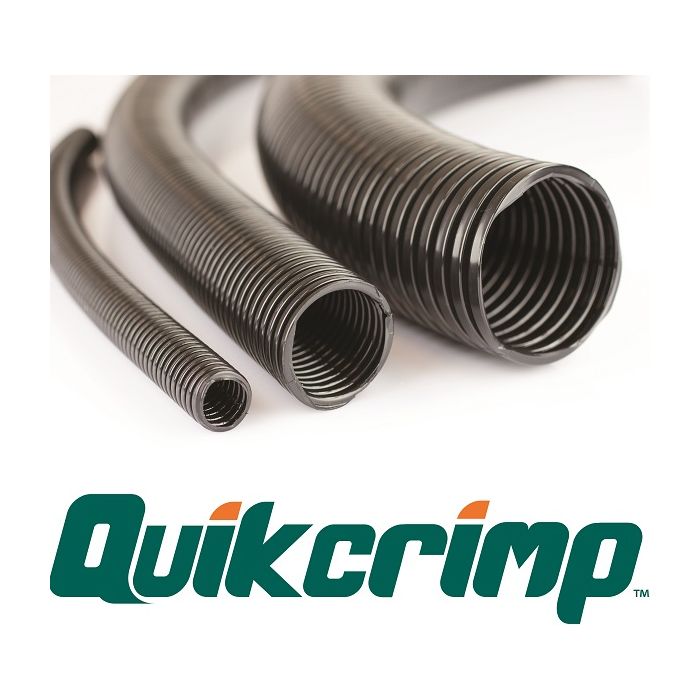

Quikcrimp NC50 Harnessflex Nylon Flexible Non-Split 50mm Corrugated Tubing 25M Roll
Special Price
$1,495.00
Regular Price
$1,522.17
In stock
SKU
NC50
Quikcrimp NC50 Harnessflex Nylon Flexible Non-Split 50mm Corrugated Tubing 25M Roll is available to buy in increments of 1
Quikcrimp NC50 Harnessflex Nylon Flexible Non-Split 50mm Corrugated Tubing 25M Roll
Quikcrimp NC50 Harnessflex Nylon Flexible Non-Split 50mm Corrugated Tubing 25M Roll
Â
Harnessflex Premium Nylon Conduit is designed to withstand temperatures from -40°C to +120°C for long term static use and holds many features including:
Â
- Resistance to many oils, solvents and petrochemicals
- Flexible tough construction with high impact strength and a long fatigue life
- High UV resistance, halogen free and self extinguishing
Â
When used in conjunction with the extensive range of fittings and adaptors the Harnessflex system offers extreme versatility for both harness manufacture and general purpose applications, which can be made fully waterproof to IP67.
| Unit of Measure | Each |
|---|---|
| Length | 25m |
| Material | Nylon |
| After Heating Outer Dimension mm | 54.5mm |
| Bore | 46.5 |
| Dielectric Strength | 25MV/m |
| Elongation At Break | N/A |
| Flexural Modulus | 1.0GPa |
| Halogen Free | Yes |
| Impact Strength Notched Izod | 0.25KJ/m |
| Melting Point | 220°C |
| Nominal Size | 50 |
| Specific Gravity | 1.14 |
| Tensile Strength | 40MPa |
| Volume Resistivity | 8 log ohm cm |
| Max Operating Temperature Static | 120°C |
| Max Operating Temperature Dynamic | 100°C |
| Min Operating Temperature Dynamic | -30°C |
| Min Operating Temperature Static | -40°C |
| Manufacturer | Quikcrimp |
|---|
