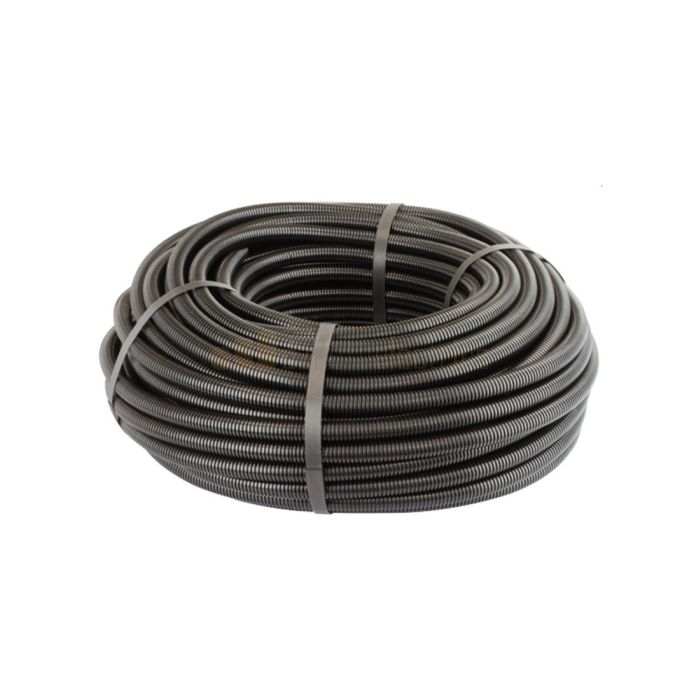

Quikcrimp NC25 Harnessflex Nylon Flexible 25mm Conduit 50m Roll
Special Price
$495.00
Regular Price
$544.26
In stock
SKU
NC25
Quikcrimp NC25 Harnessflex Nylon Flexible 25mm Conduit 50m Roll is available to buy in increments of 1
Quikcrimp NC25 Harnessflex Nylon Flexible 25mm Conduit 50m Roll
Quikcrimp NC25 Harnessflex Nylon Flexible 25mm Conduit 50m Roll
Harnessflex Premium Nylon Conduit is designed to withstand temperatures from -40°C to +120°C for long term static use and holds many features including:
- Resistance to many oils, solvents and petrochemicals
- Flexible tough construction with high impact strength and a long fatigue life
- High UV resistance, halogen free and self extinguishing
| Unit of Measure | Each |
|---|---|
| Length | 50m |
| Material | Nylon |
| After Heating Outer Dimension mm | 25.6mm |
| Bore | 21.3 |
| Dielectric Strength | 25MV/m |
| Elongation At Break | N/A |
| Flexural Modulus | 1.0GPa |
| Halogen Free | Yes |
| Impact Strength Notched Izod | 0.25KJ/m |
| Melting Point | 220°C |
| Nominal Size | 25 |
| Specific Gravity | 1.14 |
| Tensile Strength | 40MPa |
| Volume Resistivity | 8 log ohm cm |
| Max Operating Temperature Static | 120°C |
| Max Operating Temperature Dynamic | 100°C |
| Min Operating Temperature Dynamic | -30°C |
| Min Operating Temperature Static | -40°C |
| Manufacturer | Quikcrimp |
|---|
