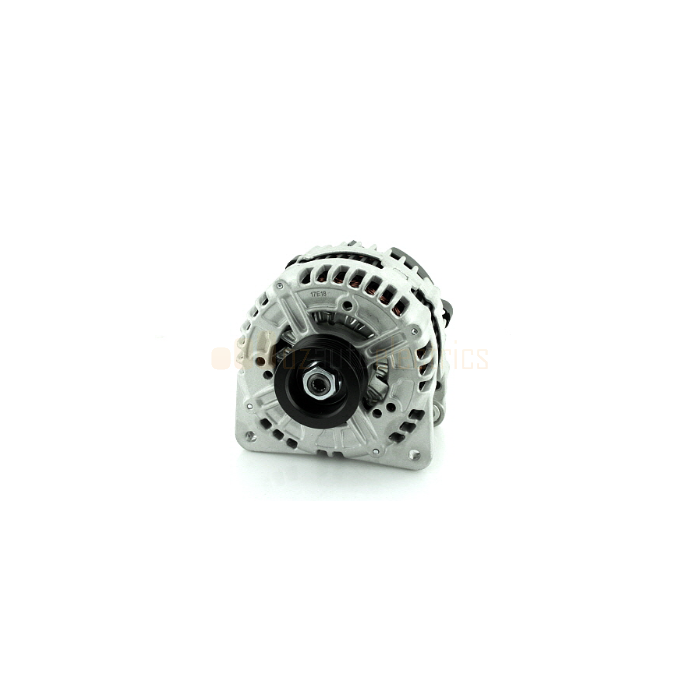

Jaylec 65-1073-1 Alternator 14V 180A Audi A4 3.0TDI
“For international customers – please note prices are shown in AUD.”
Jaylec 65-1073-1 Alternator 14V 180A Audi A4 3.0TDI is available to buy in increments of 1
Jaylec 65-1073-1 Alternator 14V 180A Audi A4 3.0TDI
Jaylec 65-1073-1 Alternator 14V 180A Audi A4 3.0TDI
| Designation |
Alternator |
| Independent aftermarket part (IAM) |
0121715176 |
| Nominal current |
180,000 A |
| Nominal voltage |
14,000 V |
| Type formula |
H8P (>) 14V 110/180A |
AUDI 059903018E
AUDI 059903018T
VW (VOLKSWAGEN) 059903018E
VW (VOLKSWAGEN) 059903018EX
VW (VOLKSWAGEN) 059903018TX
AUDI A4 3.0 TDI Avant quattro [8K5, B8] 176KW/ 239PS 3.0l 11.2009 - 04.2011
AUDI A4 3.0 TDI quattro [8K2, B8] 176KW/ 239PS 3.0l 11.2009 - 04.2011
AUDI A6 2.7 TDI Avant [4F5, C6] 140KW/ 190PS 2.7l 11.2008 - 08.2011
AUDI A6 2.7 TDI Avant quattro [4F5, C6] 120KW/ 163PS 2.7l 11.2008 - 08.2011
AUDI A6 2.7 TDI Avant quattro [4F5, C6] 140KW/ 190PS 2.7l 11.2008 - 08.2011
AUDI A6 2.7 TDI [4F2, C6] 140KW/ 190PS 2.7l 11.2008 - 08.2011
AUDI A6 2.7 TDI quattro [4F2, C6] 120KW/ 163PS 2.7l 11.2008 - 08.2011
AUDI A6 2.7 TDI quattro [4F2, C6] 140KW/ 190PS 2.7l 11.2008 - 08.2011
AUDI A6 3.0 TDI Avant quattro [4F5, C6] 155KW/ 211PS 3.0l 11.2008 - 08.2011
AUDI A6 3.0 TDI Avant quattro [4F5, C6] 176KW/ 239PS 3.0l 11.2008 - 08.2011
AUDI A6 3.0 TDI quattro [4F2, C6] 155KW/ 211PS 3.0l 11.2008 - 08.2011
AUDI A6 3.0 TDI quattro [4F2, C6] 176KW/ 239PS 3.0l 11.2008 - 08.2011
AUDI A6 Allroad 2.7 TDI [4FH, C6] 120KW/ 163PS 2.7l 11.2008 - 08.2011
AUDI A6 Allroad 2.7 TDI [4FH, C6] 140KW/ 190PS 2.7l 11.2008 - 08.2011
AUDI A6 Allroad 3.0 TDI [4FH, C6] (B) 155KW/ 211PS 3.0l 11.2008 - 08.2011
AUDI A6 Allroad 3.0 TDI [4FH, C6] 176KW/ 239PS 3.0l 11.2008 - 08.2011
AUDI A6L 2.7 TDI 140KW/ 190PS 2.7l 01.2001 - 01.2014
AUDI Q7 3.0 TDI [4LB] 150KW/ 204PS 3.0l 05.2010 - 11.2010
AUDI Q7 3.0 TDI [4LB] 150KW/ 204PS 3.0l 11.2010 - 01.2011
AUDI Q7 3.0 TDI [4LB] 155KW/ 211PS 3.0l 06.2008 - 05.2010
AUDI Q7 3.0 TDI [4LB] 171KW/ 233PS 3.0l 08.2006 - 05.2008
AUDI Q7 3.0 TDI [4LB] 176KW/ 239PS 3.0l 05.2010 - 01.2011
AUDI Q7 3.0 TDI [4LB] 176KW/ 239PS 3.0l 06.2008 - 05.2010
| Specifications |
| Voltage |
12V |
| Amperage |
180A |
| Mount Leg ID |
62mm |
| C-C Mounts |
127mm |
| Hole ID Top |
8mm, M8 |
| Hole ID Bottom |
8mm, M8 |
| Shaft Size |
17mm |
| Pulley Type |
6PV |
| Pulley Belt Width |
|
| Pulley Grooves |
6 |
| Pulley Diameter |
56mm |
| Regulator Type |
INTERNAL |
| Series |
|
| Connections Plug # |
EP83-2 |
| Terminals |
B+, LIN2, D |
| Excitation |
EXTERNAL |
| Ground |
NEGATIVE |
| Weight (Kg) |
8.0kg |
More Information
| Manufacturer |
Jaylec |
| Barcode |
4047024878587 |
