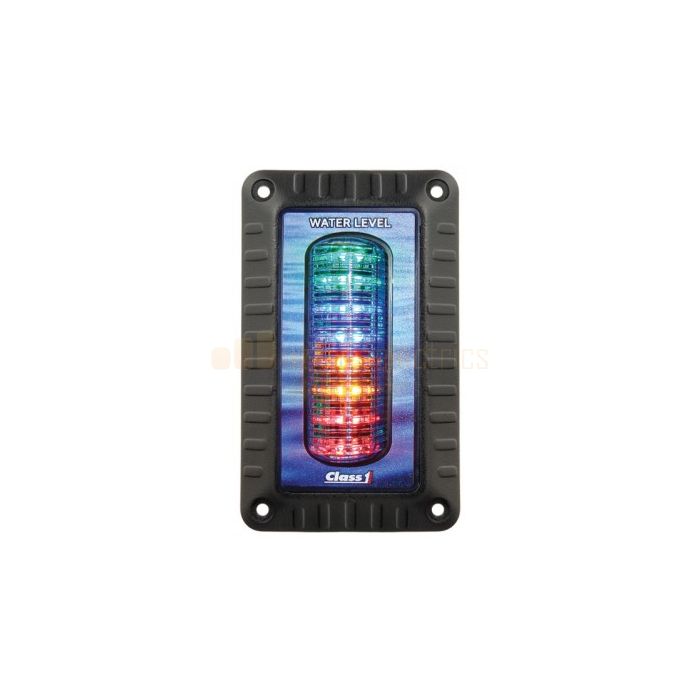

Ionnic ITL-40M Class 1 Intelli-Tank Water Level 40 Kit - Multi

Ionnic ITL-40M Class 1 Intelli-Tank Water Level 40 Kit - Multi

Features:

• Easy calibration (1 to 9 point) suitable for all tanks of any size or shape.
• Programmable output, typically used for auto-fill function, low/high tank level warning etc.
• One wire data link allows for unlimited optional remote displays.
• Ultra bright LEDs easily viewable from 180º to 9 precise tank levels.
• Custom scrolling text sequences on power up.
• Built-in self diagnostics displayed through scrolling text.
• Optional remote driver module used to control external lights, sirens etc concurrent to ITL display.
• Uses proven industrial pressure transducer instead of probes.
• Multiple programmable features inbuilt, including LED dimming level and anti-slush function.
• Rocker switch sized Mini Remote Indicator available.

Specifications:

• Voltage:9-32V
• Current Draw:100mA @ 13.8V
• Output:Digital 250mA ground
• CAN:SAE J1939
  Es-Key compatible
• Materials:Polycarbonate
• Bezel:Die-cast Alloy
• Connection:Deutsch
  DT06-12SB
• IP Rating:IP67
• Approvals:SAE J1113
  CE
• Operating Temp:-40°C to 85°C
