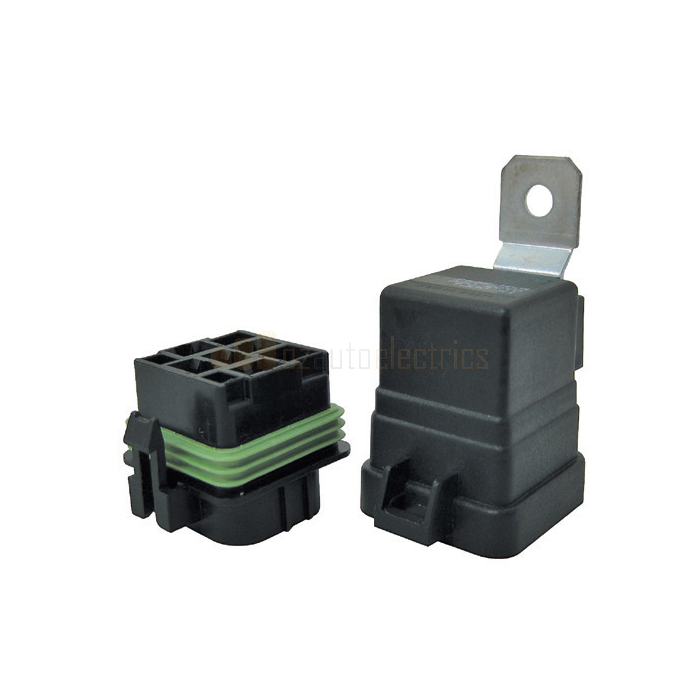

Hella Weather Proof Change Over Relay 24V 35amp N/Open 20amp

Hella Weather Proof Change Over Relay 24V 35amp N/Open 20amp

Hella Weather Proof Change Over Relay 24V 35amp N/Open 20amp

Voltage 10 - 16V DC

Operating Range -40°C to +125°C

Contact Current

Rating

NO 35A / NC 20A

Coil Resistance 70-90 Ohms @ 23°C

Transient Suppressor

Resistor

680 Ohms

Kit Contents

• 12V ISO mini relay and connector assembly kit contains:
• 1 x ISO-style 12 volt changeover relay.
• 1 x Connector body with seals for pull to seat terminals.
• 3 x Large barrel pull to seat terminal 6.3mm width suits cable size 3.00mm2.
• 2 x Small barrel pull to seat terminal 6.3mm width suits cable size 1.00 - 2.00mm2

Transient Suppressor Resistor: 680 Ohms

Relay, main current - 24V - 5-pin connector - Changeover Contact

Features

• with clip

Specifications

• Part number: HMWPR002
• Hella number: 8KW 910 182-011
• Barcode (EAN): 9314365573590
• Brand: Hella
• Voltage: 24 V
• Moisture protection: with splash-water protection
• Number of pins: 5
• Switch Function: Changeover Contact
• Resistor: 300 ohm

with clip Assy./disassy. by qualified personnel required!
