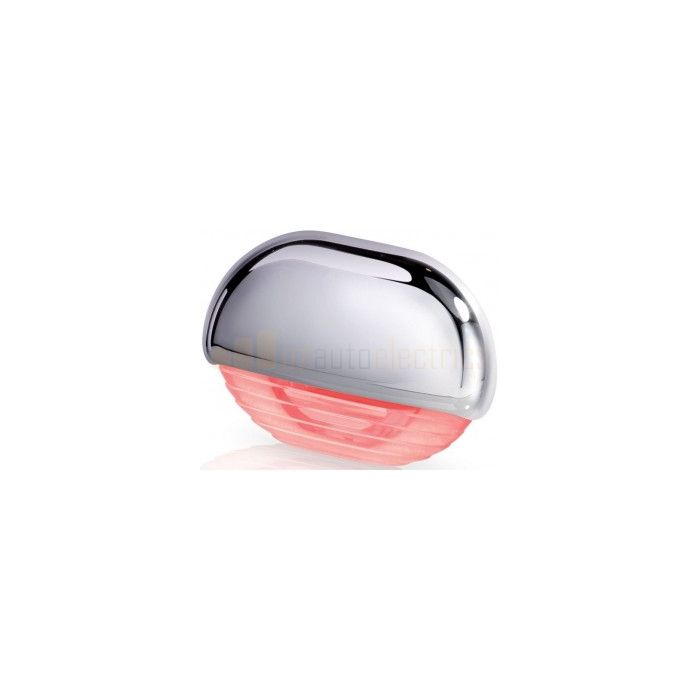

Hella Marine Red LED Easy Fit Gen2 Waterproof Step Light - Chrome Plated Plastic Cap - 12-24VDC
Hella Marine Red LED Easy Fit Gen2 Waterproof Step Light - Chrome Plated Plastic Cap - 12-24VDC
Hella Marine Red LED Easy Fit Gen2 Waterproof Step Light - Chrome Plated Plastic Cap - 12-24VDC
Attractive and timeless LED courtesy lighting for a wide variety of interior and exterior lighting applications.
Light is radiated downward at an angle of 30° making these lamps ideal for illuminating on board areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs and switches without shining into the eyes.
Multivolt electronics ensure constant light output in 12V or 24V DC systems. Easy Fit Gen 2 series lamps are completely sealed, shock and vibration resistant and represent reliable ‘fit and forget’ technology.
Note:
Gen 2 Easy Fit lamps no longer have the two open slots for mounting the original caps. This improves water tightness when installed in wet areas like cockpits. Each lamp is pre-wired with 100mm of marine cable and supplied with stainless steel screws. Optic appears clear until illuminated.
Specification
| Lens Material | UV resistant enhanced impact acrylic |
| Cap Material | White plastic, chrome plated plastic, polished 316 stainless steel |
| Cable | Pre-wired with 100mm of marine cable |
| Voltage | Multivolt for optimum brightness in 12 and 24 volt systems |
| Power Consumption | 0.5W ( < 0.04A@12V / < 0.02A@24V ) |
| Degree of Protection | IP 67 - Completely Sealed |
| Weight | Stainless Cap - 30g (including cable). Plastic Cap - 15g (including cable) |
| Approvals | CE, RCM |
| Manufacturer | Hella |
|---|---|
| Hella SAP No. | 958.126-201 |
| Barcode | 9416325238331 |
