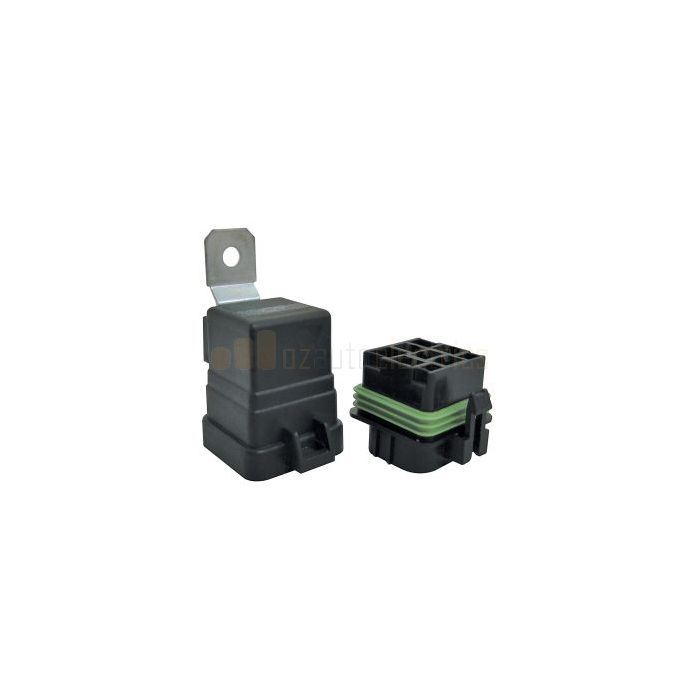

Hella HMWPR001 12V Weatherproof Changeover Relay/Connector Assembly Kit
Special Price
$150.96
Regular Price
$158.51
In stock
SKU
HMWPR001
Hella HMWPR001 12V Weatherproof Changeover Relay/Connector Assembly Kit is available to buy in increments of 1
12V Weatherproof Changeover Relay/Connector Assembly Kit
Weatherproof Relay Kit
12V ISO mini relay and connector assembly kit contains:
- 1 x ISO-style 12 volt changeover relay
- 1 x Connector body with seals for pull to seat terminals
- 3 x Large barrel pull to seat terminal 6.3mm width suits cable size 3.00mm2
- 2 x Small barrel pull to seat terminal 6.3mm width suits cable size 1.00 - 2.00mm2
Technical Specifications (Relay):
- Voltage: 10 -16V DC
- Operating Range: -40°C to +125°C
- Contact current rating: NO 35A / NC 20A
- Coil Resistance @ 23°C: 70-90 Ohms
- Transient Suppressor Resistor: 680 Ohms
| Manufacturer | Hella |
|---|---|
| Hella SAP No. | 910.182-001 |
| Barcode | 9314365042522 |
