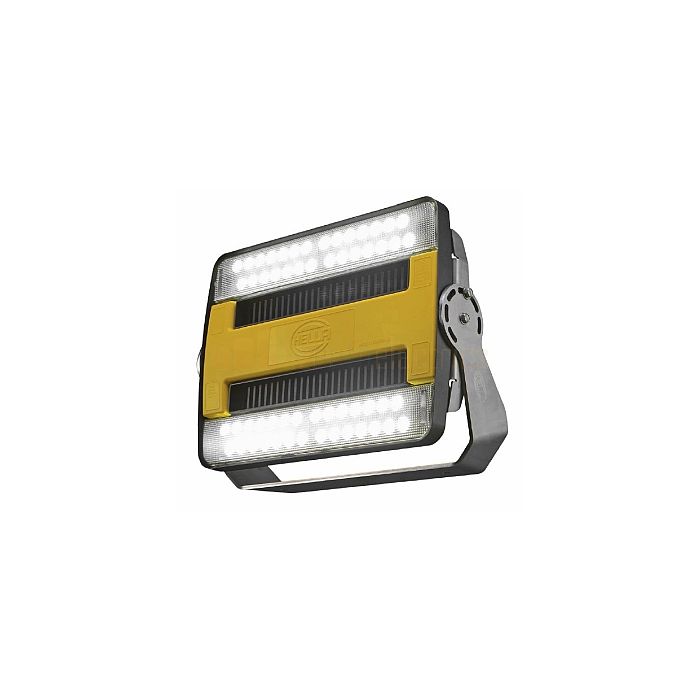

Hella HMF2000WMOB HypaLUME Heavy Duty LED Flood Light - Wide Beam

Special Price $3,978.48 Regular Price $4,177.40
In stock
SKU
HMF2000WMOB
Hella HMF2000WMOB HypaLUME Heavy Duty LED Flood Light - Wide Beam is available to buy in increments of 1

HypaLUME Heavy Duty LED Flood Light - Wide Beam

HypaLUME® Heavy Duty LED Flood Light

Introducing the revolutionary HypaLUME® – the first high output LED flood light designed specifically for heavy duty industry

HELLA is proud to introduce its revolutionary HypaLUME®  LED Flood Light, the first high output LED flood light designed specifically for heavy duty industry. The HypaLUME® is suitable for both DC and AC applications. It has been designed to withstand the rigours of every demanding application by the HELLA Australia team.

By drawing on the award winning success of our mining LED work lights, latest technologies and materials, HELLA has produced a LED flood light for heavy duty applications that will provide the most economical lighting solutions.

The HypaLUME® has been designed to excel in multiple applications, where high output LED lighting is required. 56 High Power LEDs produce more than 20,000 Lumens output – the LEDs are coupled with three specialised optical distributions, so all lighting applications are catered for.

The LEDs have a color temperature of 5700K to provide a near daylight environment – ensuring high color-rendering to assist with critical work tasks.

The LED driver electronics ensure light output remains stable over a wide range of voltage variations. The HypaLUME® is also protected from reverse polarity and short circuit faults.

The HypaLUME® consumes a mere 240W at 24VDC, ensuring a luminous efficacy close to 100 Lumens per Watt. It provides the equivalent usable light level of a 400W metal halide light fitting – for far less power consumption.

The specially designed LED driver board, moulded fins for heat dissipation and LED alignment ensure advanced thermal management, drawing heat away from the LEDs to maintain the extended life guarantee offered by HELLA Mining’s class leading 5 year LED warranty.

The HypaLUME® is designed to operate over an extreme temperature range, ranging from -40°C to +50°C with no decrease in light output. A UV stable, high impact and  chemical resistant, Grilamid lens protects the LEDs from environmental damage. A variety of bracket options are  available including a 50G mobile equipment bracket, a 15G  fixed lighting bracket, pole and cable suspension mounts, all with a wide range of aiming options.



Typical Applications


  • Excavators
  • Shovels
  • Crushers
  • Blast-hole Drill Rigs
  • Workshops

  • Wash bays
  • Separation Plants
  • Underground Tunnels
  • Loading Bays
  • Fixed Light Towers

  • Warehouses
  • Conveyor Lines
  • Continuous Miners
  • Coal Handling Processing Plants





Product Features

  • In excess of 20,000 Lumens at all operating temperatures  tested to LM-79-08
  • Sealed and tested to IP6K9K
  • Variety of bracket options including 50G mobile equipment bracket,  15G Fixed Lighting Bracket, Pole and cable suspension mount interfaces  – All with universal aiming ability
  • Input 18-52V DC, 280 Watts Max Power Draw
  • 240W Nominal @ 24V to 48V
  • **Optional Universal Mains (100-240VAC & 50-60Hz) Input when  combined with AC/DC converter
  • -40°C to +50°C operating temperature range
  • EMC approvals: ISO 13766, CE, C-tick, FCC CISPR25 Class 2  radiated emissions
  • Comes pre-wired with 1.8 Metres of high quality double insulated  marine grade cable
  • Fully sealed LED requires no servicing
  • Non-stick and easy to clean surface coating
  • ** AC/DC converter is considered a component which will be installed  as part of a complete installation by a suitably qualified person.  The final installation must be re-confirmed that EMC directives are  still met in the respective country.



5 Year LED WarrantyAll HELLA Mining LED products are covered by a five (5) year warranty on light output, excluding environmental and physical damage.



HypaLUME® Icons

HypaLUME® Icons

*Fitting only, mounting bracket will determine final value



More Information
Manufacturer Hella
Hella SAP No. 011.872-521
Barcode 9416325246404
