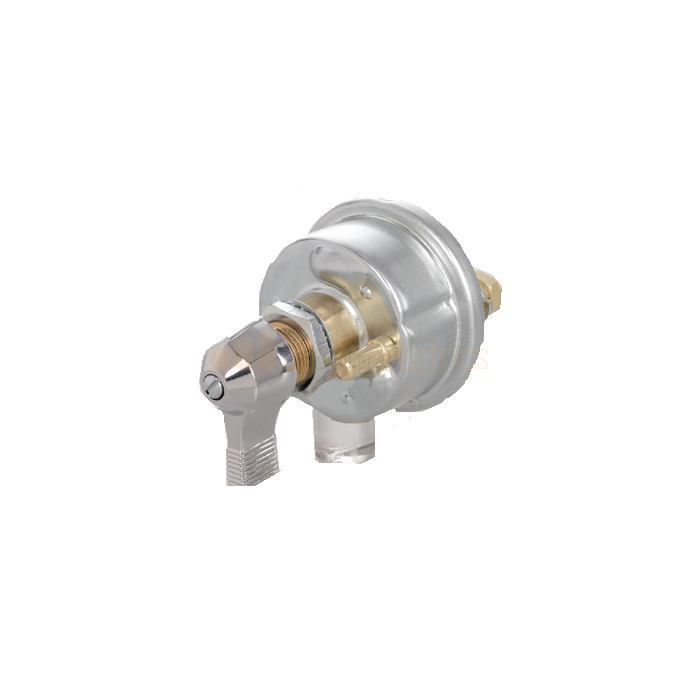

Hella Battery Master Switch Off/On 6-36V 125amp DPST
Special Price
$370.92
Regular Price
$390.44
In stock
SKU
HM7591S
Hella Battery Master Switch Off/On 6-36V 125amp DPST is available to buy in increments of 1
Hella Battery Master Switch Off/On 6-36V 125amp DPST
Hella Battery Master Switch Off/On 6-36V 125amp DPST
Hella Battery Master Switch Off/On 6-36V 125amp DPST
Mounting
19mm diameter opening.
Operating Temp.
-40°C to +29°C
Maximum Load
125A at 6-36V DC continuous
Protection
Waterproof and dustproof to IP67.
Spare Parts
9.HM759RED Red Lockout Cover
9.HM759YEL Yellow Lockout Cover
Main Switch, battery - 6/36V - 4-pin connector
Features
- Prot.type (IP Code): IP67
Specifications
- Part number: HM7591S
- Hella number: 9MK 910 109-201
- Barcode (EAN): 9314365574115
- Brand: Hella
- Voltage: 6 / 36 V
- Number of pins: 4
- Protection Type per ISO 20653: IP67
- Capacitive Load: 125 A
- Temperature range from: -40°C
- Temperature range to: 29°C
Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| Hella SAP No. | 910.109-201 |
| Barcode | 9314365574115 |
