Hella 63914 Brake Drum

Hella 63914 Brake Drum

Hella 8DT355301721 Brake Drum

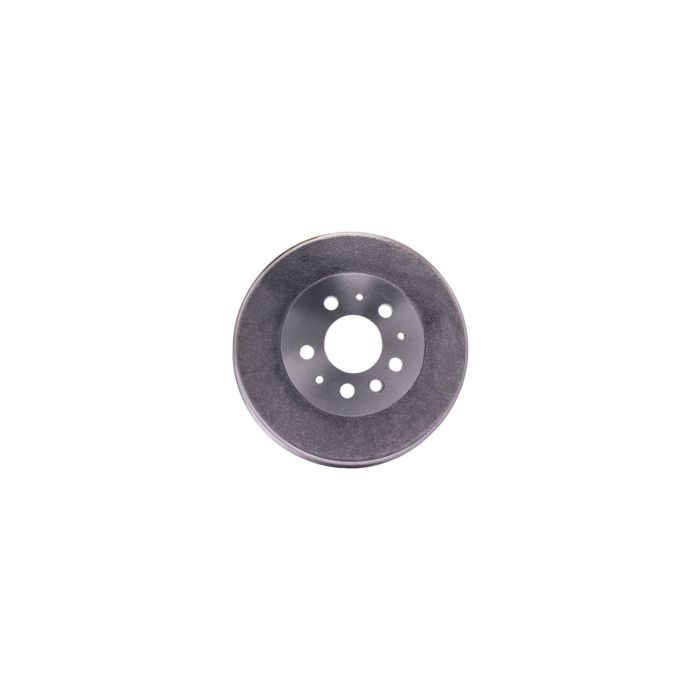

Brake Drum - 63914 - for e.g. VOLKSWAGEN

Installation - as with the original part. If integrated ABS sensors or wheel hubs and bearings are required, there is no problem as we have integrated these into our product.

Drum brakes offer attractive advantages over disc brakes, especially in the small and compact car class and also in many vehicles with an electric drive. They save weight and protect the rim from dust and dirt thanks to their closed-in design. The reduced wear allows longer maintenance intervals. And thanks to their self-reinforcement, drum brakes develop a higher braking effect with less actuation effort needed. By selecting first-class materials and high-quality castings, we can offer our customers brake drums of outstanding quality, durability and safety.

Features

• fits e.g. VOLKSWAGEN (please check exact vehicle application)
• without wheel hub/without wheel bearing/without wheel studs
• Hole Pitch/Number: 05/09 - Bolt Hole Circle Ø: 112mm
• Outer brake drum diameter: 311mm - Weight: 9.1kg
• Brake drums in premium quality
• Hella brake drums far exceed the required specifications of the ECE R90 directive
• Market coverage of > 81% of European vehicle stocks

Specifications

• Part number: 63914
• Hella number: 8DT 355 301-721
• Barcode (EAN): 4082300391640
• Brand: Hella
• Fitting Position: Rear Axle
• Outer brake drum diameter: 311 mm
• Total brake drum height: 88 mm
• Inner brake drum diameter: 268 mm
• Inner brake drum height: 69 mm
• max. brake drum reboring dimension: 269.5 mm
• Number of Holes: 5
• Bolt Hole Circle Ø: 112 mm
• Centering Diameter: 68.1 mm
• Wheel Bolt Bore Diameter: 16.8 mm
• Weight: 9.1 kg

without wheel bearing; without wheel hub; without wheel studs Assy./disassy. by qualified personnel required!
