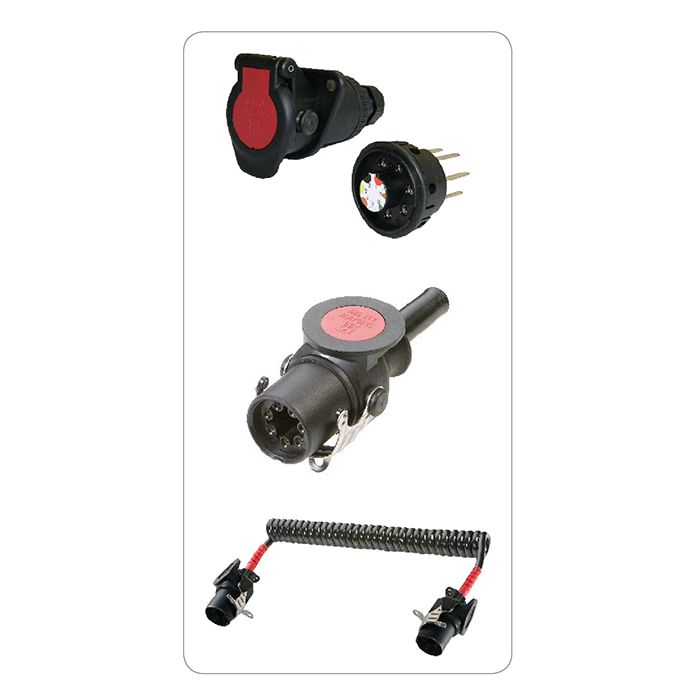

Hella 7Pin/24V - ABS/EBS Connectors

Special Price $63.28 Regular Price $66.44
In stock
SKU
8JA227440041
Hella 7Pin/24V - ABS/EBS Connectors is available to buy in increments of 1

Hella 7Pin/24V - ABS/EBS Connectors

Hella 7Pin/24V - ABS/EBS Connectors

Description

The ABS/EBS/ADR (ADR=Dangerous Goods Certified) connectors are used on nearly every commercial vehicle type with ABS/EBS System. They show safety features like automatic ejection of the plug in case of faulty wiring.
To avoid confusion between 24V and 12V connectors, the systems feature different codings. The connectors are available for normal and ADR applications. The letter inserts are red for the 24V ADR systems and white for the normal systems.

Features

  • System meets the high requirements of modern trailer connectors according to ISO 4091
  • High performance cage-contacts with crimp terminals
  • Prevention of a faulty connection due to an ejector pin mechanism in the socket
  • Easy and efficient assembly
  • Different wire exits available (cable, corrugated tube)
  • Systems specially designed for the application
  • Crimp contacts for OE-purposes
  • Waterproof to IP 54
  • Screw contacts for spare part purposes

More Information
Manufacturer Hella
Hella SAP No. 227.440-041
Barcode 9314365579707
