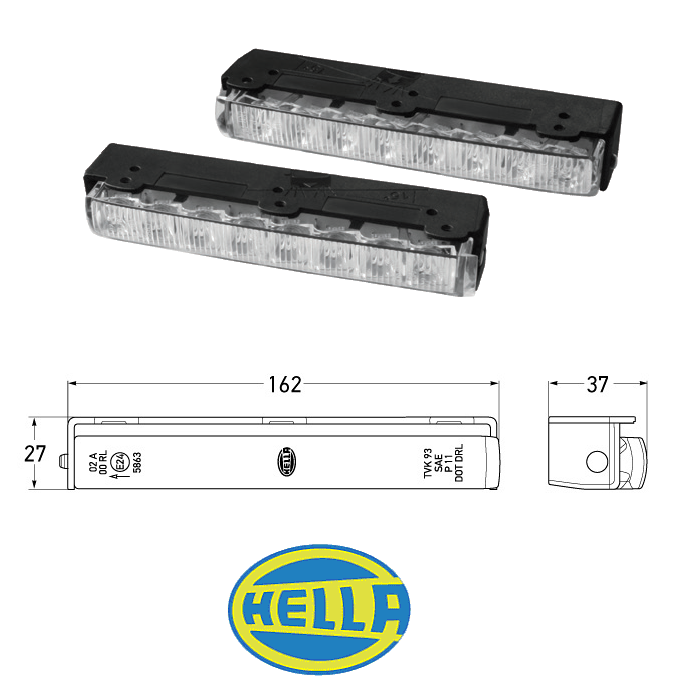

Hella 5630 LED Safety DayLights Kit - 15

Hella 5630 LED Safety DayLights Kit - 15

A lens angle of 15 degrees allows installation as close as possible to the corners of a modern motor vehicle. These lamps were designed to fit the curved bumpers of modern vehicles to give the look of Original Equipment fitment. The lamps have extremely low power consumption at 2W per lamp and high-impact acrylic lenses to protect against impact damage.

Mounting Suitable for horizontal mounting.
Power Consumption 2W
Protection Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning).
Cable Length Pre-wired with 2.5m of sheathed multi-core cable.
Lens Material High impact acrylic.
Compliance ADR 76/00 E24 5863 ECE R87/00
Kit Contents 5630/...-24V 5630-BL/...-24VBL
2 x LED Safety DayLights™ 2 x LED Safety DayLights™
2 x Mounting brackets 2 x Mounting brackets
6 x Mounting screws 6 x Mounting screws
1 x Changeover relay 1 x Smart controller relay
1 x Instruction sheet 1 x Terminal kit
1 x Instruction sheet
