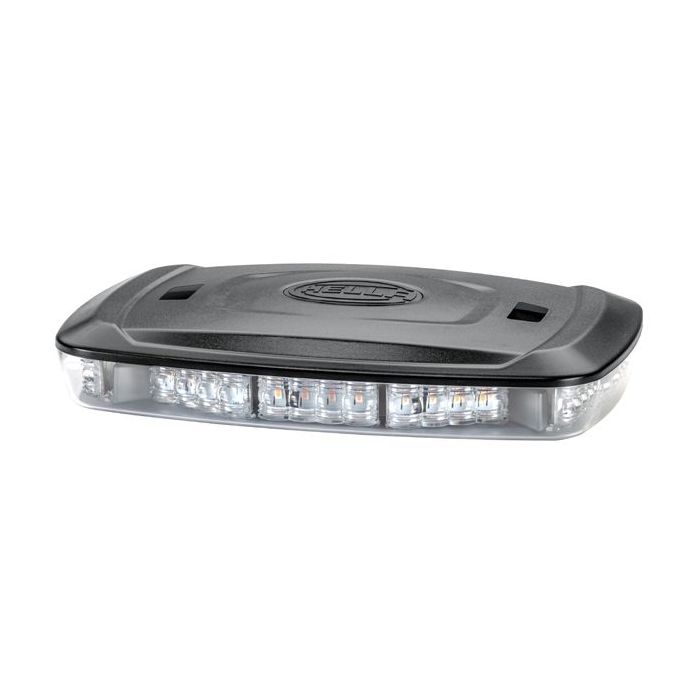

Hella 2RL014566111 LED Warning Signal Lamp - 12, 24V (Clear Lens)

Hella 2RL014566111 LED Warning Signal Lamp - 12, 24V (Clear Lens)

Hella 2RL014566111 LED Warning Signal Lamp - 12, 24V (Clear Lens)

LED-Warning Light - Micro Lightbar - 12/24V - Amber - Cable: 500mm - mounting

The powerful LED warning lights "Micro Lightbar" and "Mini Lightbar" generate an intensive 360-degree warning signal and are suitable for various applications. Both sizes of the light bar offer different design and mounting options and combine a flashing and a rotating signal in one product. The Micro and Mini Lightbars are available with a clear or yellow cover lens option, the built-in LEDs providing the warning signal are yellow for both design variants. In addition, there is also a special SAE version with a two-colour warning signal. Half of this is equipped with yellow LEDs and half with white LEDs. Depending on the mounting variant, the flat light bars can be fixed with screws, a bracket or by magnets. They are suitable for both 12V and 24V systems.

Features

• Lamp Type: LED - Power consumption: 70W
• With rotating warning signal/With flashing warning signal - Lens Colour: Crystal clear - LED colour: Amber - Fitting Position: mounting
• Registration Type: SAE - Prot.type (IP Code): IP6X/IPX4K/IPX9K
• Housing material: PC (Polycarbonate) - Housing Colour: Black
• Length: 255mm - Width: 165mm - with clip/Electromagnetic Compatibility (EMC)
• Narrow roof beam with a height of only 49 mm (without bracket)
• Micro variant with a width of 255 mm and a depth of 165 mm
• Multivolt (10 - 30 V)
• Flashing or rotating light function

Specifications

• Part number: 2RL014566111
• Hella number: 2RL 014 566-111
• Barcode (EAN): 4082300777543
• Brand: Hella
• Fitting Position: mounting
• Lamp Type: LED
• Light Design: LED
• Lens Colour: Crystal clear
• LED Colour: yellow (amber)
• Voltage: 12 / 24 V
• Housing material: PC (Polycarbonate)
• Light Function: with flashing warning signal / with rotating warning signal
• Cable Length: 500 mm
• Power Consumption: 70 W
• Light colour: yellow (amber)
• Housing Colour: black
• Protection Type per ISO 20653: IP6X / IPX4K / IPX9K
• Reverse polarity protection: Yes
• Temperature range to: 65°C
• Temperature range from: -40°C
• Registration Type: SAE approved
• Length: 255 mm
• Width: 165 mm
• Depth: 45 mm
• Product line: Micro Lightbar

Electromagnetic Compatibility (EMC) Electromagnetic Compatibility (EMC) 123-77-3; Diazene-1,2-dicarboxamide (C,C-azodi(formamide)); 25550-51-0; Hexahydromethylphthalic anhydride; 7439-92-1; Lead Assy./disassy. by qualified personnel required!
