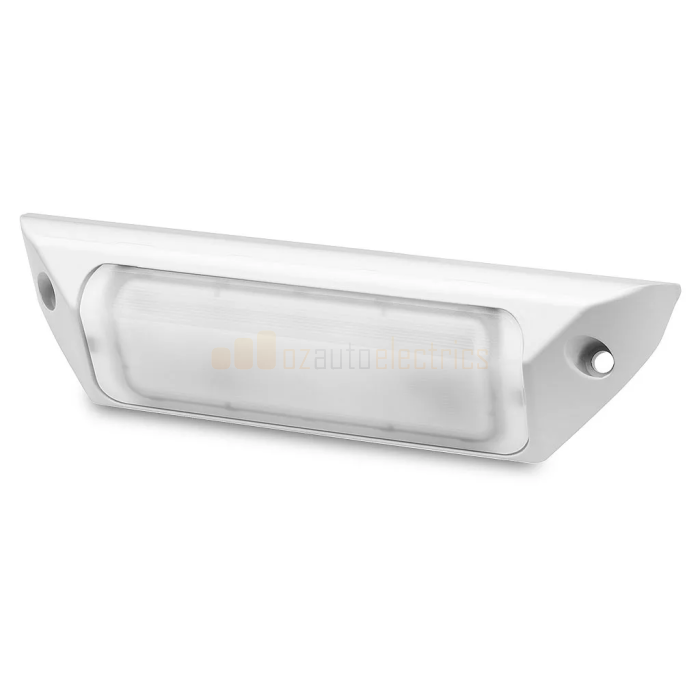

Hella 1GB996098501 LED Work Lamp Spread Beam FMS 1200 - White

Hella 1GB996098501 LED Work Lamp Spread Beam FMS 1200 - White

LED-Worklight - FMS Base - 24/12V - 1200lm - Bolted - 2-point attachment - Surface Lighting - Cable: 500mm - Plug: open cable ends

The FMS (Flat Mounting Solution) worklight is a flat and compact LED worklight with an elegant design.

Its flat design makes it ideal for mounting situations where space is at a premium and also integrates perfectly into the appearance of the vehicle.

Even with level wall mounting, the light is directed downwards towards the floor. This ensures good illumination of the working area even when mounted flat.

The flat mounting method also ensures greater safety, as there are no parts protruding from the vehicle that could endanger people.

In addition, this design allows no surfaces to be endangered or damaged even at high speeds.

The FMS is a flat and compact LED work lamp in a nifty design. The slim build is a perfect fit for applications in tight spaces and integrates perfectly with the appearance of the whole vehicle. The FMS was developed in a way, that ensures a great ground illumination, even with a vertical wall mounting. Thus providing an evenly lighted work area. This feature is highly advantageous for municipal and emergency vehicles, as well_x000D_ as for heavy equipment, where a lot of work is done in the perimeter of the vehicle. The FMS is also a great fit for marine applications as it functions perfectly as a deck lamp. Furthermore, the flat mounting increases the safety of the vehicle, because no components stick out and therefore cannot lead to any injuries to civilians. Additionally the work lamp is therefore well protected to external influences, even at high speeds. The FMS is available as a Base and a Prime model, in the colours black, white and red.

Features

• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 14W - Colour Temperature: 6500K
• Patterned diffusing lens
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Housing Colour: White
• Width: 243mm - Height: 38mm - Depth: 38mm

Specifications

• Part number: 1GB996098501
• Hella number: 1GB 996 098-501
• Barcode (EAN): 9002920164177
• Brand: Hella
• Mounting Type: Bolted
• Fastening Type: 2-point attachment
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Height: 38 mm
• Width: 243 mm
• Depth: 38 mm
• Light Distribution: Ground Illumination
• Registration Type: ADR/GGVS approved
• fulfils ECE standard: R10
• fulfils test standard: RCM
• Plug Type: open cable ends
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Luminous Flux: 1200 lm
• Colour Temperature: 6500 K
• Number of LEDs: 4
• Power Consumption: 14 W
• Cable Length: 500 mm
• Housing Type: Aluminium Housing
• Housing Colour: white
• Lens Type: patterned lens
• Product line: FMS Base

7439-92-1; Lead; 96-45-7; Imidazolidine-2-thione; (2-imidazoline-2-thiol) Assy./disassy. by qualified personnel required!
