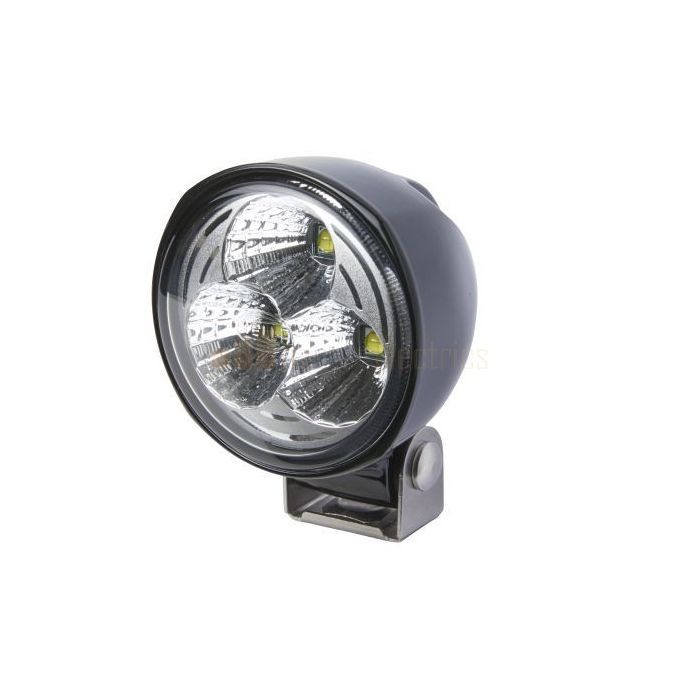

LED-Worklight - Modul 70 Gen. IV - 9/33V - 2500lm - Bolted - Swivelling Mounting Bracket/Vertical/Suspended - Long-range illumination - Cable: 1000mm - Plug: open cable ends

Features

• Lamp Type: LED - Number of LEDs: 3 - Power consumption: 21W
• Prot.type (IP Code): IP6K9K
• Aluminium Housing - Housing Colour: Black - Diffusing Lens Material: Glass
• Ø: 83mm - Height: 110mm - Depth: 74mm

Specifications

• Part number: 1G0996476221
• Hella number: 1G0 996 476-221
• Barcode (EAN): 9002920156202
• Brand: Hella
• Mounting Type: Bracket mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Height: 89 mm
• Overall Height: 111 mm
• Width: 83 mm
• Depth: 74 mm
• Light Distribution: Long-range illumination
• fulfils ECE standard: R10
• Plug Type: open cable ends
• Protection Type per ISO 20653: IP6K8 / IP6K9K
• Luminous Flux: 3500 lm
• Colour Temperature: 6500 K
• Number of LEDs: 3
• Power Consumption: 29 W
• Cable Length: 1000 mm
• Housing Colour: black
• Housing Type: Aluminium Housing
• Lens Material: Glass
• Lens Type: patterned lens
• Shape: round
• Registration Type: CISPR 25-tested / ECE approved / RCM approved
• Light colour: white
• Voltage from: 9 V
• Voltage to: 32 V
• Theoretical luminous flux: 4375 lm
• Housing material: Die-Cast Aluminium
• Weight: 532 g
• Temperature range from: -40°C
• Temperature range to: 85°C
• Light Function: with LED work light
• Lens Colour: Crystal clear
• Reverse polarity protection: Yes
• fulfils EMC/CISPR standard: Class 5
• Product line: Modul 70 Gen. IV

Assy./disassy. by qualified personnel required!
