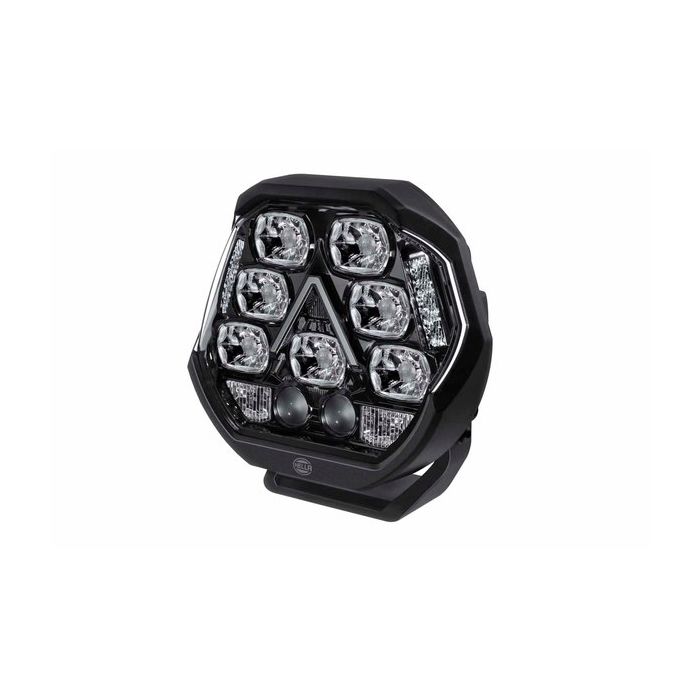

Hella 1F7358228861 Antares 7'' Driving Light Kit

Hella 1F7358228861 Antares 7'' Driving Light Kit

Hella antares 7'' driving light kit for off-road and auxiliary driving light applications.

Spotlight - Antares - 12/24V - hexagonal - ECE - Clear diffusing lens - Cable: 500mm

Features

• Width: 185.9mm - Height: 170.4mm - Depth: 77.6mm - Fitting Depth: 88mm - Overall Height: 190.7mm - Lamp Type: LED
• Light functions: 3 - with position light (LED)/with low beam (LED)/with daytime running light (LED)
• Registration Type: ECE - fulfils ECE norm: R10/R148
• with housing - Material: Aluminium - Housing Colour: black
• Mounting Type: Screw Connection - Fastening Type: Screw-on

Specifications

• Part number: 1F7358228861
• Hella number: 1F7 358 228-861
• Barcode (EAN): 4082300995343
• Brand: Hella
• Mounting Type: Bolted
• Fastening Type: Swivelling Mounting Bracket
• Fitting Position: frontal sided
• Lamp Type: LED
• Light Design: LED
• Voltage: 12 / 24 V
• Rated Power: 160 W
• Voltage from: 10 V
• Voltage to: 30 V
• Height: 170.4 mm
• Overall Height: 190.7 mm
• Width: 185.9 mm
• Depth: 77.6 mm
• Total Depth: 88 mm
• Light Function: with daytime running light (LED) / with low beam (LED) / with position light (LED)
• Number of light functions: 3
• Light colour: white
• Temperature range from: -40°C
• Temperature range to: 60°C
• fulfils ECE standard: R10 / R148
• Protection Type per ISO 20653: IP67 / IP69K
• Cable Length: 500 mm
• Plug Type: DEUTSCH plug
• Shape: hexagonal
• Housing Type: Aluminium Housing
• Housing Colour: black
• Frame Colour: black
• Lens Type: clear lens
• Lens Material: PC (Polycarbonate)
• Quantity Unit: Pair
• Product line: Antares

with cover; with fastening material Assy./disassy. by qualified personnel required!
