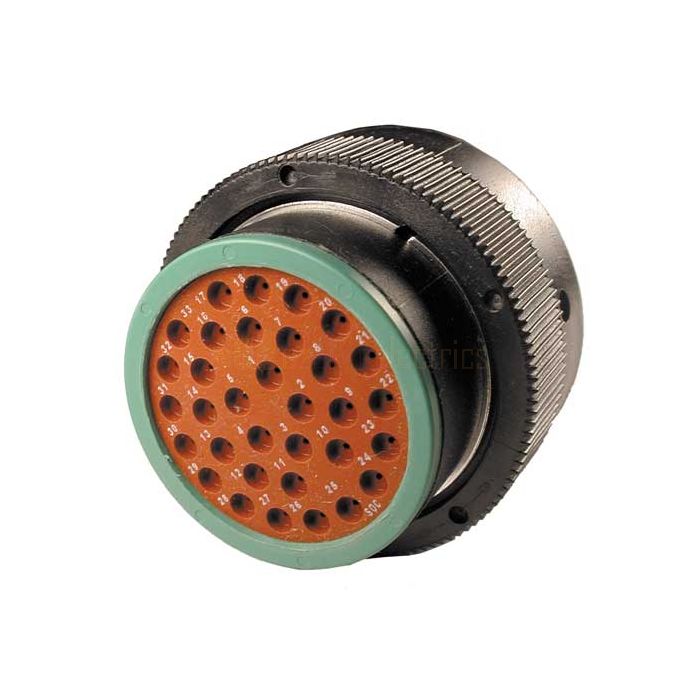

Deutsch HDP26-24-33SN HDP20 Series 33 Cavity Connector Plug
Deutsch HDP26-24-33SN HDP20 Series 33 Cavity Connector Plug
Product Type Features
-
Connector Shape : Circular
-
Connector System : Wire-to-Wire
-
Connector & Housing Type : Housing for Female Terminals
-
Sealable : Yes
-
Connector & Contact Terminates To : Wire & Cable
-
Primary Locking Feature : Contact Retainer
-
Mixed & Hybrid Connector : No
Configuration Features
-
Connector Seal Code : N Seal
-
Number of Positions : 33
-
Blank Cavity Position : 0
Electrical Characteristics
-
Operating Voltage (VAC): 250
-
Operating Voltage (VDC): 250
-
Nominal Voltage Architecture (V): 12, 24, 48
Body Features
-
Cable Exit Angle : 180°
-
Primary Product Color : Black
Contact Features
-
Contact Type : Socket
-
Contact Size : Size 20
-
Mating Pin Diameter : 1.02 mm [ .04 in ]
-
Contact Current Rating (Max) (A): 7.5
Mechanical Attachment
-
Mating Alignment : With
-
Mating Alignment Type : Guide Slot
-
Strain Relief : Add By Accessory
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Terminal Position Assurance : No
Housing Features
-
Housing Material : PA GF
Dimensions
-
Compatible Insulation Diameter Range : 1.02 – 2.41 mm [ .04 – .095 in ]
-
Product Length : 38.63 mm [ 1.521 in ]
-
Product Width : 49.53 mm [ 1.95 in ]
-
Connector Height : 49.53 mm [ 1.95 in ]
Usage Conditions
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
-
Circuit Application : Power & Signal
Industry Standards
-
UL Flammability Rating : 20mm Flame Test per Standard UL-94
-
Degree of Protection : IP67
| Manufacturer | Deutsch |
|---|---|
| Cavities | 33 |
| Series | HDP20 Series |
| Contact Size | 20 (7.5 Amps) |
| Current Rating (Amps) | 7.5 Amps |
-
Ionnic DET20 Deutsch Crimping Tool (Size 20)Special Price $60.17 Regular Price $62.68 -
Deutsch 0462-201-20141 Contact Size 20Special Price $1.15 Regular Price $1.20 -
Deutsch 0411-240-2005 Removal ToolSpecial Price $5.83 Regular Price $6.08 -
Deutsch 0462-201-2031 Size 20 Gold SocketSpecial Price $2.11 Regular Price $2.20 -
Deutsch D20 Size 20 Removal ToolSpecial Price $24.22 Regular Price $25.23 -
Deutsch 0413-204-2005 Size 20 Sealing PlugSpecial Price $0.22 Regular Price $0.23 -
Deutsch 0462-005-2031 Size 20 Gold Purple Band Socket 7.5ampsSpecial Price $5.16 Regular Price $5.38 -
HDP24-24-33PN CONNECTOR RECEPTACLESpecial Price $40.54 Regular Price $42.23
