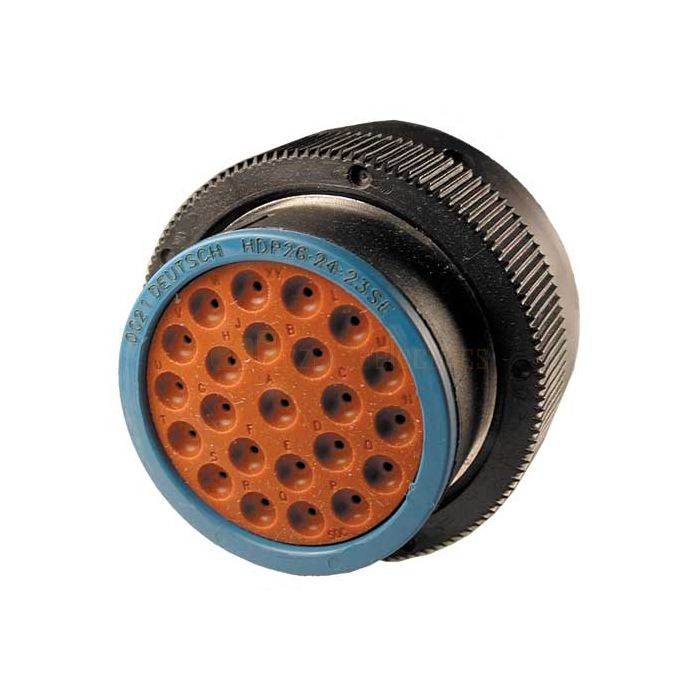

Deutsch HDP26-24-23SE HDP20 Series 23 Cavity Connector Plug

Special Price $43.22 Regular Price $45.03
In stock
SKU
HDP26-24-23SE
Deutsch HDP26-24-23SE HDP20 Series 23 Cavity Connector Plug is available to buy in increments of 1
Deutsch HDP26-24-23SE HDP20 Series 23 Cavity Connector Plug

Deutsch HDP26-24-23SE HDP20 Series 23 Cavity Connector Plug

Product Type Features

  • Connector Shape : Circular

  • Connector System : Wire-to-Wire

  • Connector & Housing Type : Housing for Female Terminals

  • Sealable : Yes

  • Connector & Contact Terminates To : Wire & Cable

  • Primary Locking Feature : Contact Retainer

  • Mixed & Hybrid Connector : No

Configuration Features

  • Connector Seal Code : E Seal

  • Number of Positions : 23

  • Blank Cavity Position : 0

Electrical Characteristics

  • Operating Voltage (VAC): 250

  • Operating Voltage (VDC): 250

  • Nominal Voltage Architecture (V): 12, 24, 48

Body Features

  • Cable Exit Angle : 180°

  • Primary Product Color : Black

Contact Features

  • Contact Type : Socket

  • Contact Size : Size 16

  • Mating Pin Diameter : 1.59 mm [ .063 in ]

  • Contact Current Rating (Max) (A): 13

Mechanical Attachment

  • Mating Alignment : With

  • Mating Alignment Type : Guide Slot

  • Strain Relief : Add By Accessory

  • Connector Mounting Type : Cable Mount (Free-Hanging)

  • Terminal Position Assurance : No

Housing Features

  • Housing Material : PA GF

Dimensions

  • Compatible Insulation Diameter Range : 1.35 – 3.05 mm [ .053 – .12 in ]

  • Product Length : 38.63 mm [ 1.521 in ]

  • Product Width : 49.53 mm [ 1.95 in ]

  • Connector Height : 49.53 mm [ 1.95 in ]

Usage Conditions

  • Operating Temperature (Max) : 125 °C [ 257 °F ]

  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

  • Circuit Application : Power & Signal

Industry Standards

  • UL Flammability Rating : 20mm Flame Test per Standard UL-94

  • Degree of Protection : IP67

More Information
Manufacturer Deutsch
Cavities 23
Series HDP20 Series
Contact Size 16 (13 Amps)
Current Rating (Amps) 13 Amps
