Deutsch HDP24-24-21PN HDP20 Series 21 Pin Receptacle

Skip to the end of the images gallery

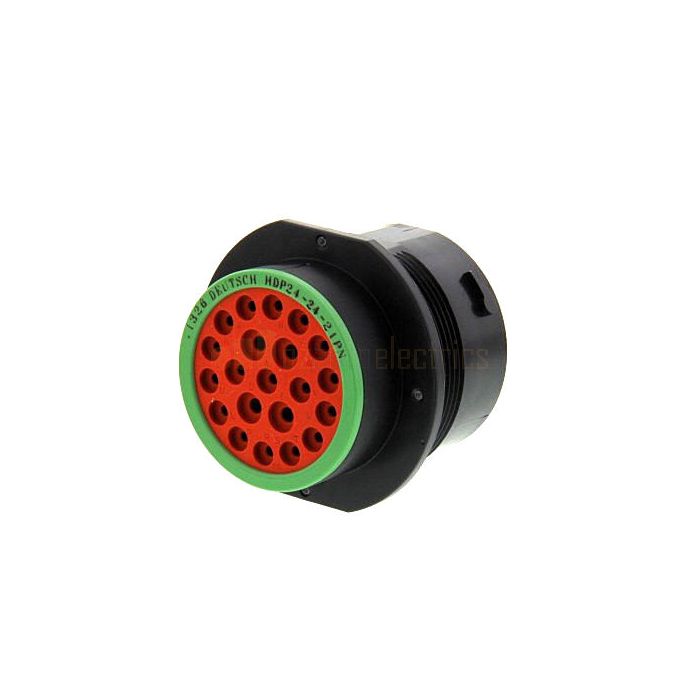

main product photo

Skip to the beginning of the images gallery

Deutsch HDP24-24-21PN HDP20 Series 21 Pin Receptacle

Be the first to review this product

Special Price $31.20 Regular Price $32.50

In stock

SKU

HDP24-24-21PN

Deutsch HDP24-24-21PN HDP20 Series 21 Pin Receptacle is available to buy in increments of 1

Deutsch HDP24-24-21PN HDP20 Series 21 Pin Receptacle

Deutsch HDP24-24-21PN HDP20 Series 21 Pin Receptacle

Features & Details

Series: HDP20 Series
Cavities: 21
Contact Size: 12, 16
Current Rating: 25, 13

Technical Details

Part Number:	HDP24-24-21PN
Series:	HDP20 Series
Insulation:	(#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
Wire Size:	10, 12, 14, 16, 18, 20
Keyed:	No
Color:	Black
Material:	Plastic
Shape:	Circular
Connector Style:	Receptacle
Cavities:	21
Contact Size:	12, 16
Shell Size:	24 shell
Seal Size:	N seal
Current Rating:	25, 13
Holds Pin/Socket:	Pin
Flange/In-line/PCB Mount:	Flange, In-line

More Information

More Information
Manufacturer	Deutsch
Cavities	21
Series	HDP20 Series
Contact Size	12 (25 Amps), 16 (13 Amps)
Current Rating (Amps)	25 Amps
