Deutsch DTKIT-WORKSHOP DT Series Connector Workshop Kit - 604 Piece with Tools

Special Price $967.01 Regular Price $1,007.30
In stock
SKU
DTKIT-WORKSHOP
Deutsch DTKIT-WORKSHOP DT Series Connector Workshop Kit - 604 Piece with Tools is available to buy in increments of 1

Deutsch DTKIT-WORKSHOP DT Series Connector Workshop Kit - 604 Piece with Tools

Deutsch DTKIT-WORKSHOP DT Series Connector Workshop Kit - 604 Piece with Tools

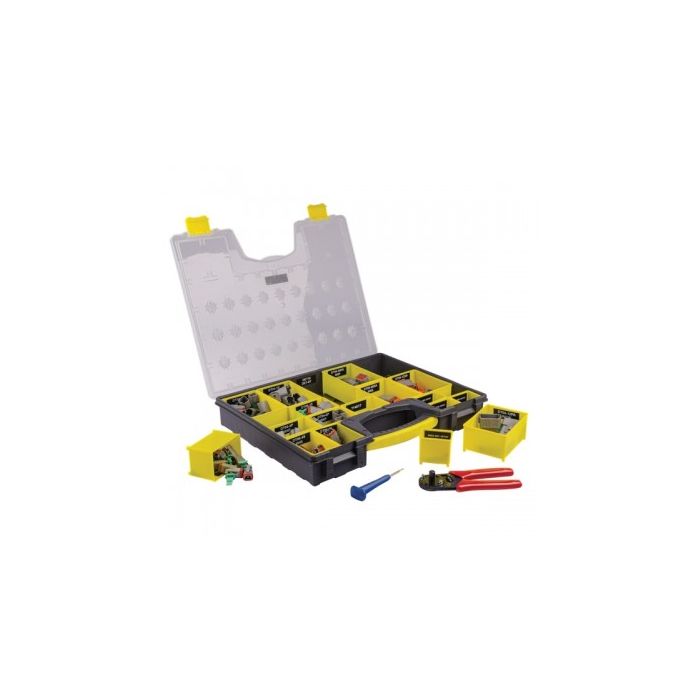

  • 604 piece workshop kit containing assortments of DT Series connectors & contacts.
  • Includes crimp tool and multi-use removal tool.
  • Connectors environmentally sealed – IP68, IP6K9K, when installed to manufacturer's specifications.
  • Solid contacts.
  • Including wedgelocks.
  • Removable compartment boxes.
  • Contents clearly labelled

Kit Contents:

Receptacles and Wedge Locks

  • 10x DT04-2P
  • 10x DT04-3P
  • 6x DT04-4P
  • 6x DT04-6P
  • 3x DT04-8PA
  • 3x DT04-12PA

Plugs and Wedgelocks

  • 10x DT06-2S
  • 10x DT06-3S
  • 6x DT06-4S
  • 6x DT06-6S
  • 3x DT06-8SA
  • 3x DT06-12SA

Contacts and Sealing Plugs

  • 50x 114017 Sealing Plugs
  • 100x 0462-209-16141 Green Band Solid Pins
  • 100x 0462-201-20141 Green Band Solid Sockets
  • 100x 0460-202-16141 Solid Pins
  • 100x 0460-201-16141 Solide Sockets

Tools

  • 1x DET16
  • 1x DET-RT

Technical Specifications:

Housing Thermoplastic
Seal Silicone Rubber
Wedgelock Thermoplastic
Contact Copper Alloy
Contact Plating Nickel
Contact Size 16
Contact Rating 13A @ 125°C
Shock 50G
Vibration 20G rms 10 - 2000Hz
Approvals 20mm Flame Test per Standard UL-94
Ingress Protection IP68, IP6K9K
Operating Temperature -55°C to 125°C

More Information
Manufacturer Deutsch
Series DT Series
Contact Size 16 (13 Amps)
Current Rating (Amps) 13 Amps
