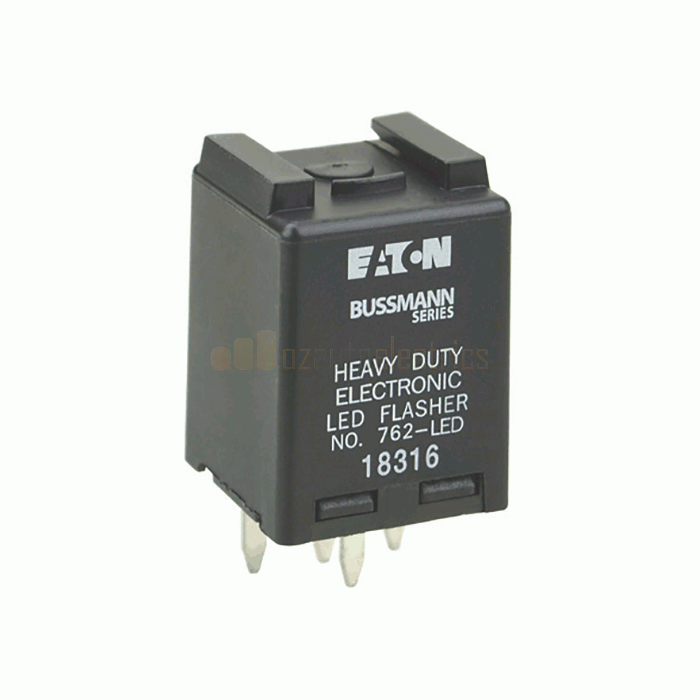

Bussmann NO-762-LED Flasher Relay .8VDC 12.6A
Special Price
$52.75
Regular Price
$54.23
Out of stock
SKU
NO-762-LED
Bussmann NO-762-LED Flasher Relay .8VDC 12.6A
Bussmann NO-762-LED Flasher Relay .8VDC 12.6A
Number Lamps: 3 to 6
Number Terminals: 4
Terminal Size: 2.8mm (ISO 280)
Specifications: FMVSS108, SAE J590B, J945 & J1690 Class A
Rated Load: Fixed load 3 to 6 SAE number 1156 lamps.
Lamp Ratings: No.1156, 2.1A at12.8V No.1895, 0.27A at 14V 1-12 Amps
Power: 162W
Temperature Rating: - °C to + °C 23 60
Rated Voltage: 11 to 15V, 11 to 13V (53 ), °C 12.8V (25 ), 11 to 13V (-17 ) °C °C
Voltage Drop at Current: 800mV
Time to First Flash: Less than 1.5 secs
Flash Rate over Temp. Range: 60 to 120 flashes/minute
Duty Cycle: 35% to 75%
Electrical Source: 15A & 10A fused circuits
Number Lamps: 3 to 6 Number Terminals: 4 Terminal Size: 2.8mm (ISO 280)
| Manufacturer | Bussmann |
|---|
