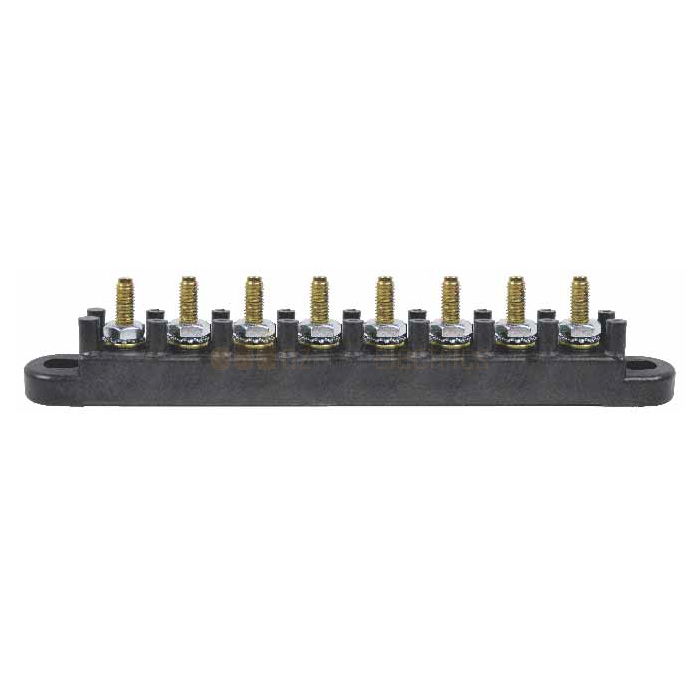

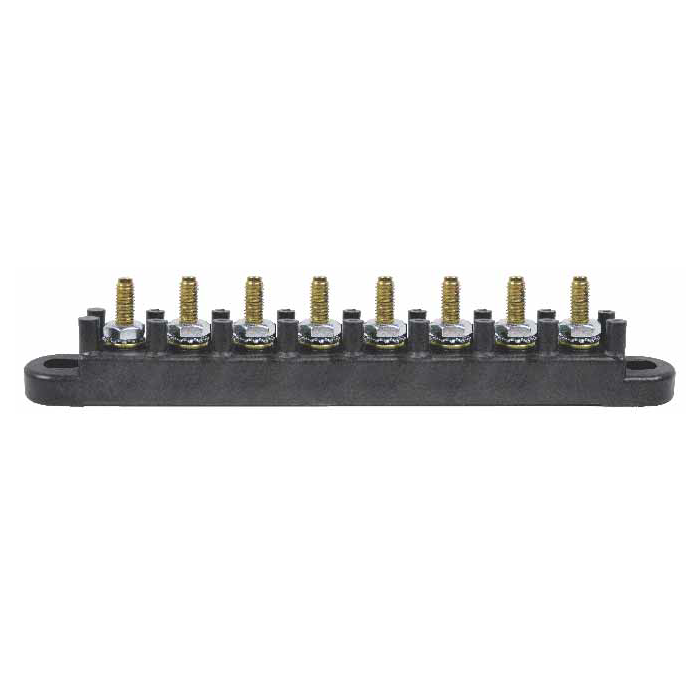

Bussmann C5237-8 Stud Junction Block Non-Feed Thru 30A 8 Pole

Special Price $25.65 Regular Price $29.15
In stock
SKU
C5237-8
Bussmann C5237-8 Stud Junction Block Non-Feed Thru 30A 8 Pole is available to buy in increments of 1

Bussmann C5237-8 Stud Junction Block Non-Feed Thru 30A 8 Pole

Bussmann C5237-8 Stud Junction Block Non-Feed Thru 30A 8 Pole

Rating & Voltage:

  • (CSA): 30A at 600V
  • (UL): 30A at 300V



Body: Black Thermoplastic
Studs: Yellow zinc plated brass. #10-32 threaded studs on 0.625" (15.9mm) centers. Studs feature a "dog point" to guide nut onto thread.
Torque Rating: 2.8Nm max.
Hardware: Nuts & washers included.
Pack Size: Please call sales.
Temperature Rating: 120oC
Features: Numbers & arrows molded on top of barriers to indicate terminals.
Notes: Extended range also available contact sales.

More Information
Manufacturer IONNIC
