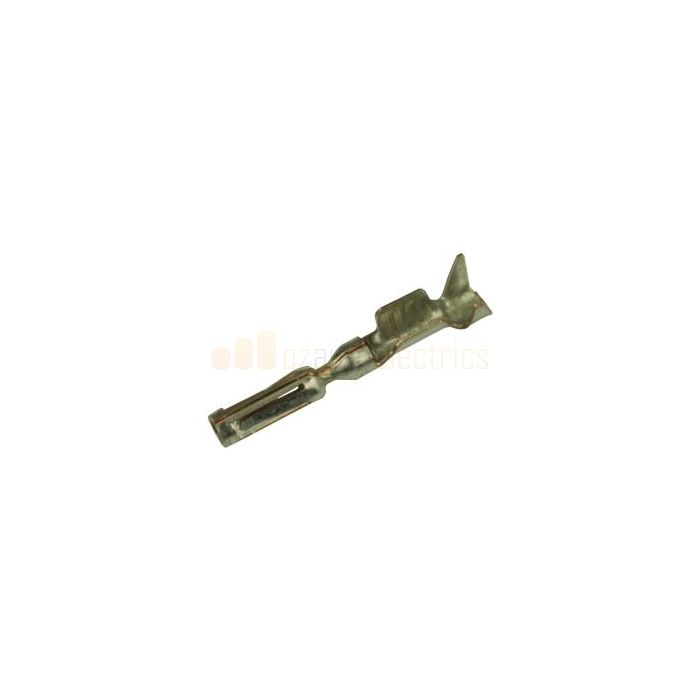

AMPSEAL 16 Connector Terminals

Special Price $1.71 Regular Price $1.80
In stock
SKU
770520-1
AMPSEAL 16 Connector Terminals is available to buy in increments of 1

AMPSEAL 16 Connector Terminals (10)

AMPSEAL 16 Connector System Terminals (10)

Product Features
Product Type Features:
  • Product Line = AMPSEAL
  • Product Type = Contact
  • Wire/Cable Type = Discrete Wire
  • Termination Method to Wire/Cable = Crimp
  • Strain Relief = Without

Mechanical Attachment:
  • Panel Mount Retention = Without

Electrical Characteristics:
  • Contact - Rated Current (A) = 8 – 17
  • Operating Voltage Reference = AC
  • Operating Voltage (VAC) = 250

Termination Features:
  • Wire/Cable Size (mm²) = 1.5
  • Wire/Cable Size (AWG) = 16 – 20

Body Features:
  • Wire Type = Stranded
  • Underplate Material Thickness (µm [μin]) = 2.50 – 5.00 [98.420 – 196.850]

Contact Features:
  • Contact Type = Socket
  • Contact Base Material = 0.38 Copper Alloy
  • Contact Plating, Mating Area, Material = Pre-Tin
  • Contact Plating, Mating Area, Thickness (µm [μin]) = 2.5 – 5 [98.42 – 196.85]
  • Underplate Material = Pre-Tin
Industry Standards:
Environmental:
  • Operating Temperature (°C [°F]) = -40 – +105 [-40 – +221], -40 – +125 [-40 – +257]

Conditions for Usage:
  • Applies To = Wire/Cable
  • Accepts Wire Insulation Diameter, Range (mm [in]) = 1.70 – 2.70 [0.067 – 0.106]

Operation/Application:
  • Application Use = Wire-to-Wire
  • Contact Transmits (Typical Application) = Signal/Power

Packaging Features:
  • Packaging Method = Package
  • Packaging Quantity = 100

Other:
  • Brand = AMP
  • GET 0.64 Connector System = No
More Information
Manufacturer TE Connectivity
