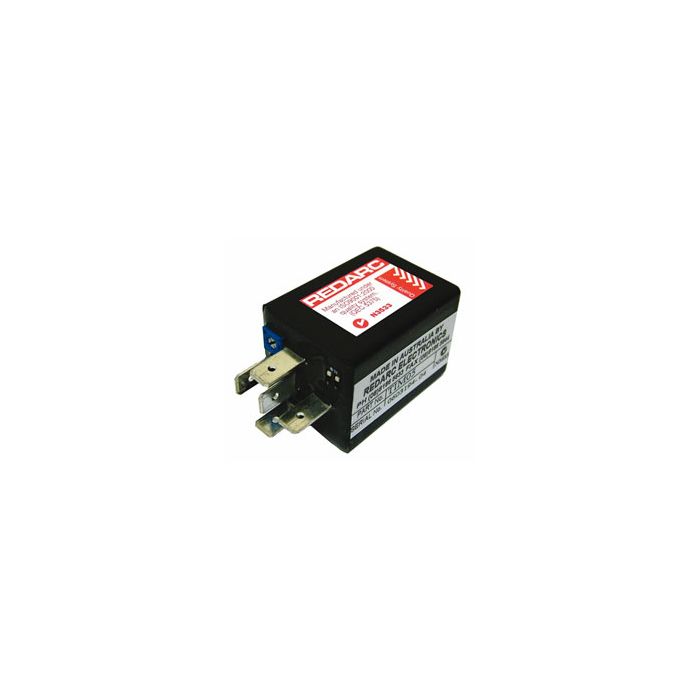

Redarc TIM05 Multi Function Timer
The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram). Contacts operate in a similar way to a changeover relay.
• The timer switches the internal relay to provide output on PIN 87. (Positive output only)
• The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).
• Use Switch 2 to select time range between SECONDS and MINUTES.
• Use the potentiometer to adjust time (increasing in clockwise direction).
The TIM05 & TIM06 can supply a maximum current of 10 AMPS.
- User adjustable 1- 60 seconds/minutes
- Change over type relay
- Standard automotive relay base
- Fully customisable upon request
Switch 1 ON: Input ON starts timer
Switch 1 OFF: Input OFF starts timer
Switch 2 OFF: 1 to 60 Seconds
Switch 2 ON: 1 to 60 Minutes
